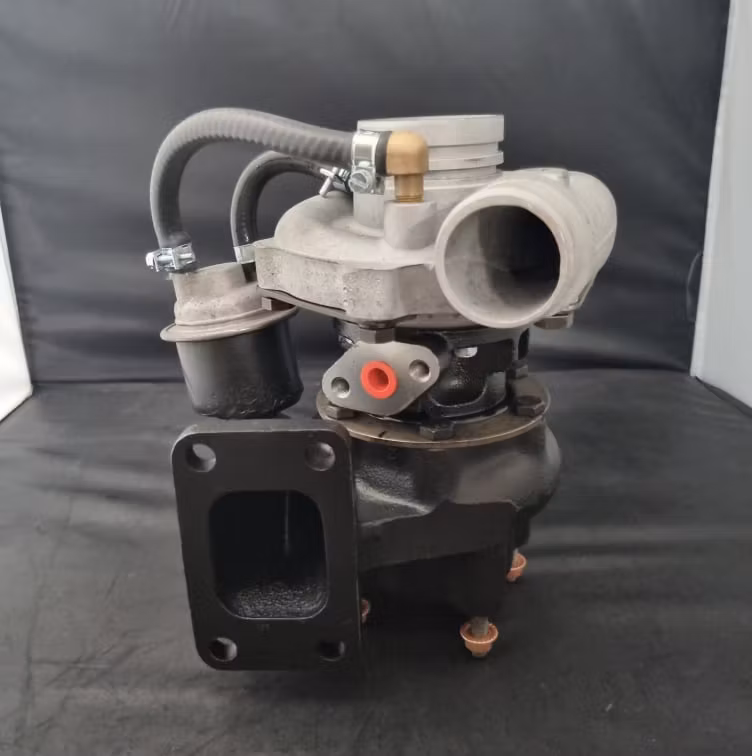

466088-5001S / 466088-5002S Garrett TA0307 Volvo D24T ( Bytesturbo )
En riktig Volvo klassiker åter i lager ! ( Tillfälligt slut vi jagar stommar att bygga bytesturbo utav har ni att sälja maila [email protected] ) ( Kan renoveras för 5000 inkl moms här tar 1-3 arbetsdagar )
Sitter på Volvo D24T bland annat.
466088-5001S Garrett TA0307 Volvo D24T ( Bytesturbo )
Originalnummer : 075145701, 5002706, 075145701X, 075145701V, 075145703, 5002706, 1328179
Bytesturbo = gamla turbon skall i retur efter bytet.
Packningssats ingår vid köp utav denna turbo.
Turbonummer / Turbofakta / Originalnummer :
| Part Number | 466088-5001S |
| Previous Version | 466088-0001, 466088-0002, 466088-1, 466088-2 |
| OE number | 075145701, 5002706, 075145701X, 075145701V, 075145703, 5002706, 1328179 |
| Year | 1982-94 |
| Description | Commercial Volkswagen LT, Volvo 760,765, 940, 960 |
| CHRA | 409853-0018 (409853-5018S, 409853-0048, 409853-0004, 409853-0044, 409853-0018, 409172-0069, 409853-0061)(1100030900, 300020003, 576026C91) $295.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | TA0307 |
| Model | LT 28-35 I (281-363), LT 40-55 I (291-512), LT 40-55 I (293-909), LT 28-35, I Bus (281-363), Volvo 740/760/940 |
| Engine | D24T, TDI, 1G, DV 6 |
| Engine Manufacturer | VW |
| Displacement | 2.38L, 2384 ccm, 6 Cyl. |
| Fuel | Diesel |
| KW | 66/80/90 HP |
| Angle α (compressor housing) | 255º |
| Angle β (turbine housing) | 158º |
| Bearing Housing | 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oljekylt ) |
| Turbine Wheel | 451310-0003 (451310-0006)(Ind. 65. mm, Exd. 49.06 mm, 11 Blades)(1100030436, 1100030438) |
| Comp. Wheel | 409096-0014 (103217-0000, 409096-0005, 442198-0001)(Ind. 42.52 mm, Exd. 60.09 mm, 6+6 Blades, Superback)(1100030402) |
| Back plate | 409629-0003 (409629-0001, 409629-0006, 409629-0007, 409629-0010, 409629-0016)(1100030300) |
| Heat shield Number | 409627-0000 (103121-0000)(1100030340) |
| Repair Kit | 707897-0001 (200115-0000, 3545830)(dynamic seal)(1100030750) |
| Turbine Housing | 410224-0013 |
| Compressor Cover | 409589-0061 (430730-0054) |
| Turbine Housing AR | 0.36 |
| Settings Waste gate (pressure) | 0.76-0.88 bar |
| Settings Waste gate (lift rod) | 1.27 mm |
| Gasket (turbine inlet) | 409039-0001 (409039-0000, 210019, 2405022) |
| Gasket (turbine outlet) | 210225 (Stainless Steel) |
| Gasket oil inlet | 210023 (409026-0001, 409036-0000, 147837, 215234, 52231586500)(1900000037) |
| Gasket (oil outlet) | 210021 (409037-0000, 413671-0000, 409266-0001, 147837, 3755739, 3709737, 3500681, 55739, 3519762)(1900000027) $3.32 |
| Gasket valve | 409262-0000 $19.50 |
| Manufacturer | Honeywell-Garrett |
Applications
1982-94 Volkswagen LT I 2.4L TD Engine 1G, DV6, 6 Cyl.
1982-94 Volkswagen Bus TD (281-363) Engine 1G, DV6, 6 Cyl.
1991- Volvo 760,765, 940, 960 TD Engine D24T
