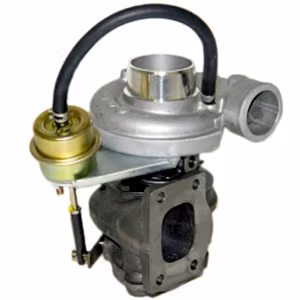

452181-5001S Garrett TB2571 fabriksny originalturbo.

  • 1,077.33 EUR
  • 915.73 EUR

452181-5001S Garrett TB2571 fabriksny originalturbo. ( Beställningsvara 2-3 dagars levtid ) Monteringssats medföljer vid köp utav denna fabriksny originalt

I lager.
Varenummer: 452181-5001S
Del

452181-5001S Garrett TB2571 fabriksny originalturbo. ( Beställningsvara 2-3 dagars levtid )

Monteringssats medföljer vid köp utav denna fabriksny originalturbo.

Vi utför även renovering utav denna turbo om det önskas samt vi erbjuder reservdelar se relaterat nedan :

Turbonummer / Originalnummer :

Part Number452181-5001S
Previous Version452181-0001, 452181-9001S, 452181-1
OE number0R9510, 0R-9510, 2674A079, U2674A079, 1232926, 123-2926
DescriptionJCB Excavator 315, Caterpillar Earth Moving 315 317
CHRA443854-0122 (443854-5122S, 87800063)
Turbo ModelTB2571
Prefix7ZM, 9WM, 1WN, 8ZM
Machine Engine3054
ExcavatorM312, M315, 315, 312
S/N5HK22000-42450, 5HK42471-99999,  HDM99608
Displacement4.0L, 4000 ccm, 4 Cylinders
KW112
FuelDiesel
Angle α (compressor housing)265°
Angle β (turbine housing)190°
Bearing Housing 435349-0011 (435349-0005)
Turbine Wheel435406-0003 (Ind. 53. mm, Exd. 41.7 mm, Trm 62, 10 Blades)
Comp. Wheel446335-0012 (Ind. 38.2 mm, Exd. 54. mm, Trm 50, 5+5 Blades)
Back plate430735-0001 (430612-0003) (1100025300
Heat shield Number443594-0001 (1100025341)
Repair Kit709143-0001 (1100025761)
Turbine Housing 413567-0038
Compressor Cover434288-0015
Turbine Housing AR0.49
Actuator432340-0060
Settings Waste gate (pressure)1.200-1.300 Bar
Settings Waste gate (lift shaft)1.00  mm
Gasket (turbine inlet)409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port) $9.99
Gasket (turbine outlet)210225 (Stainless Steel)
Gasket (oil outlet)413709-0001 (Paper) $5.11
ManufacturerHoneywell-Garrett


Applications


Caterpillar CAT 315 317  Excavator  3054

JCB   Excavator 315 Earth Moving
