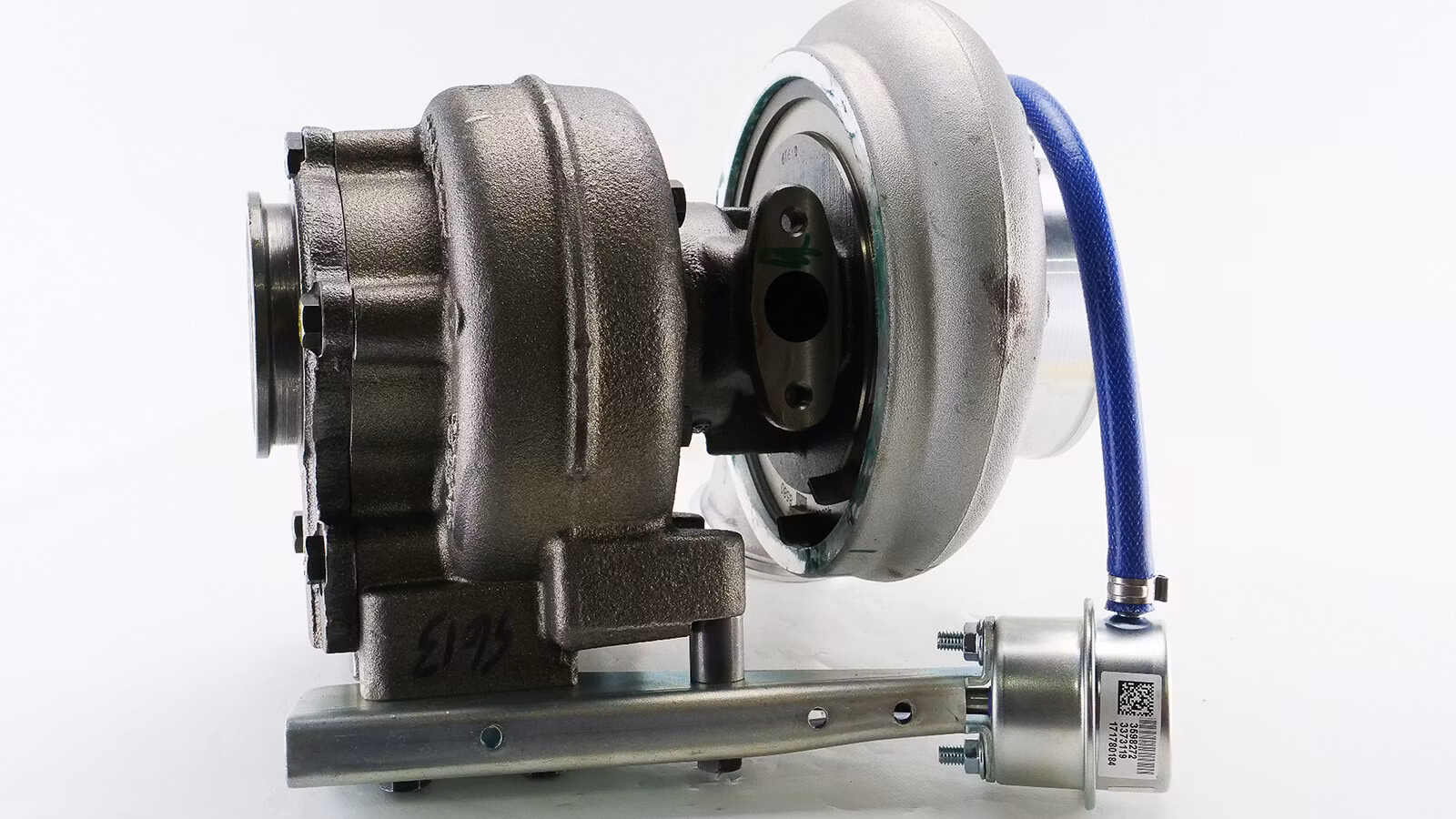

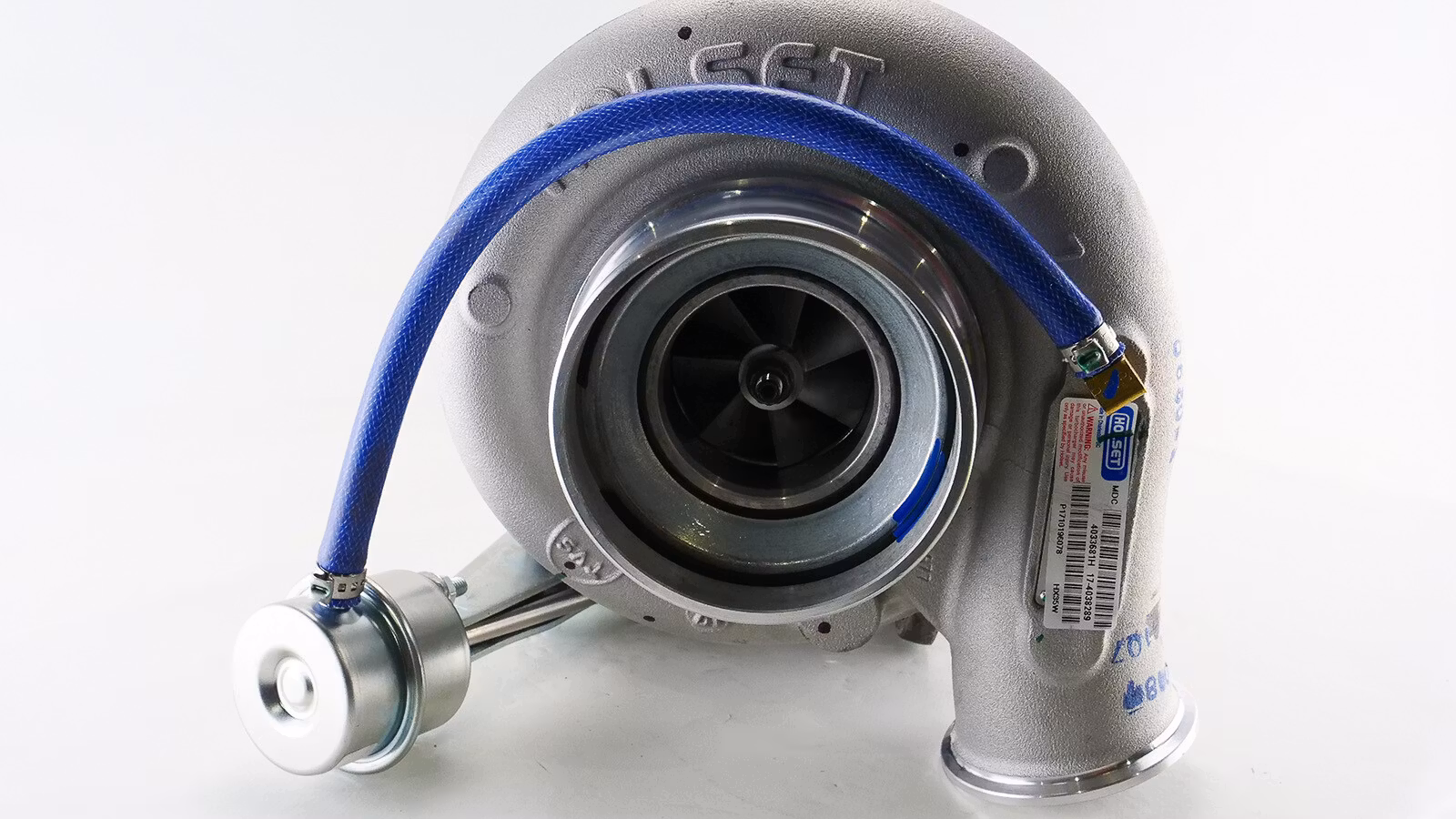

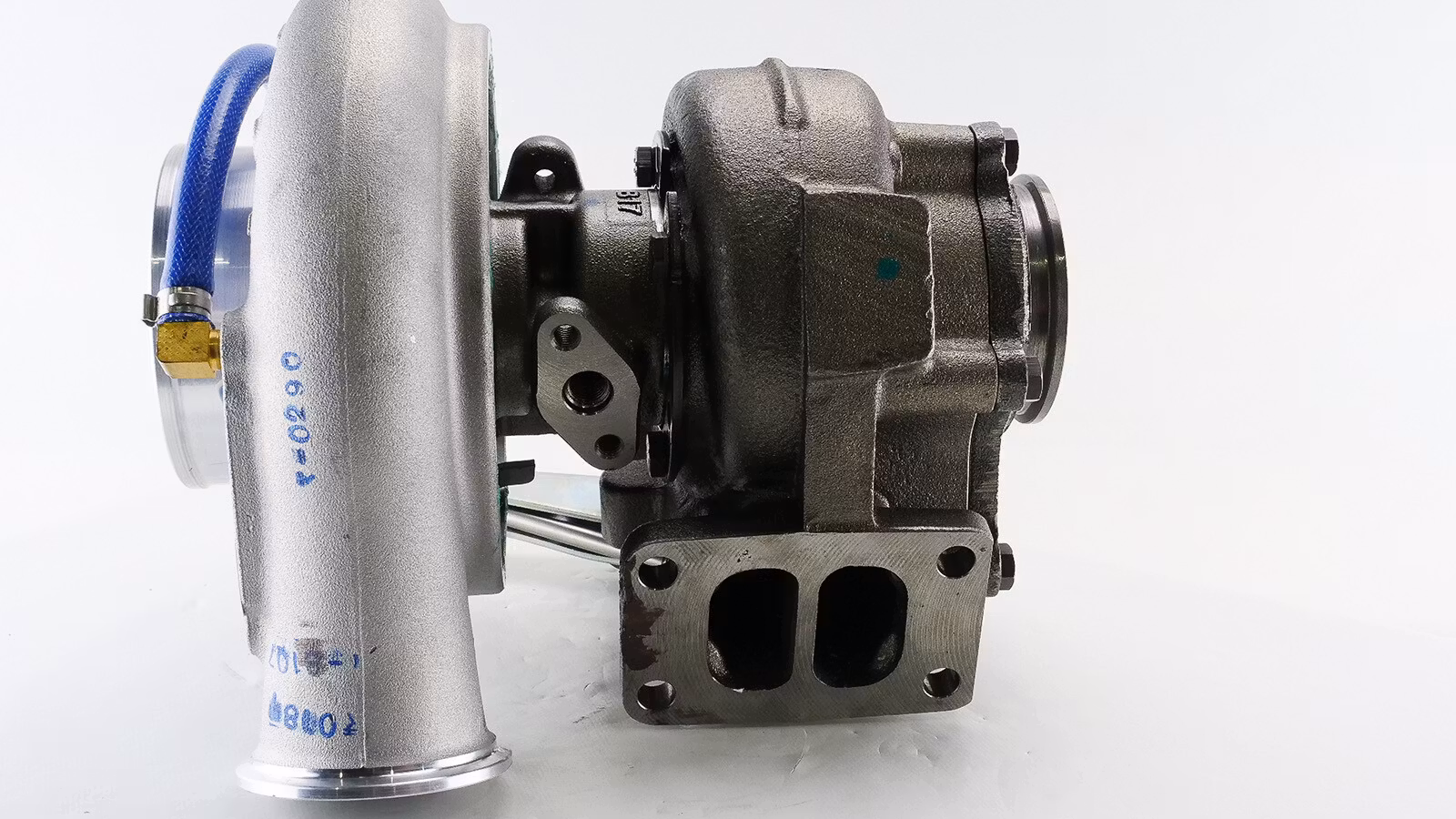

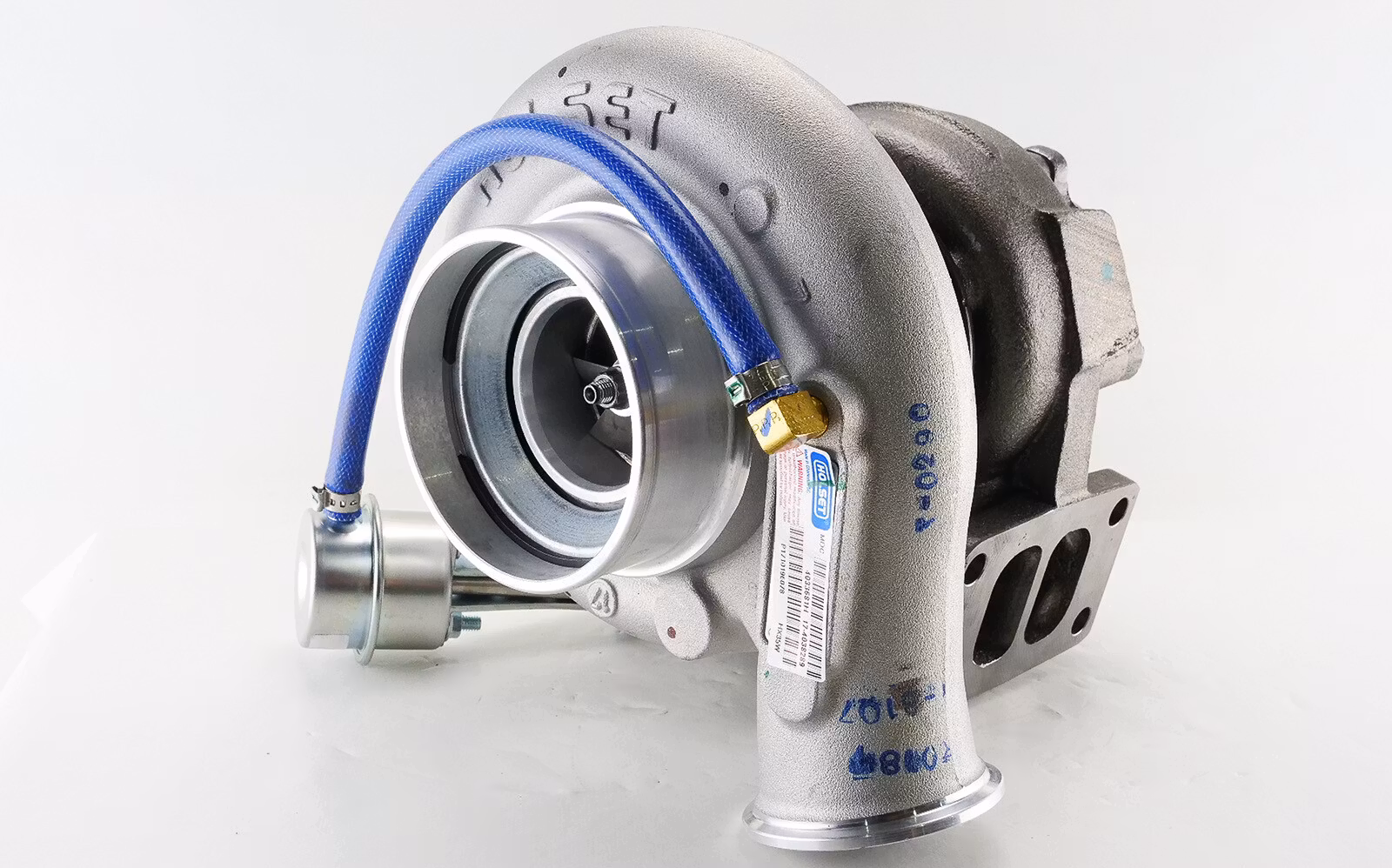

4038289H / 4033681H HX35W Holset Fabriksny originalturbo : 5452082, 5452082NX, 5452082RX

  • 1,468.49 EUR
  • 1,321.64 EUR

4038289H / 4033681H HX35W Holset Fabriksny originalturbo : 5452082, 5452082NX, 5452082RX- Fabriksny originalturbo.- 3 års garanti.- Monteringssats ingår.Turbonu

I lager.
Varenummer: 4033681H
Del

4038289H / 4033681H HX35W Holset Fabriksny originalturbo : 5452082, 5452082NX, 5452082RX

- Fabriksny originalturbo.

- 3 års garanti.

- Monteringssats ingår.

Turbonummer / Originalnummer / Turbofakta :

Part Number 4038289
Previous Part Number4033681, 4033681H, 4038287, 4039333, 4043678
OE Number5452082, 5452082NX, 5452082RX
Year 2004-12
Description Truck
Manufacturer Part Number 4039333, 4038287, 4043678
CHRA4030868 (4027212, 3538421, 3575215)(1153035900, 1000020136) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35W-A77J70GM/A70Q86FE14PB-W, HX35W
EngineQSB Tier-3, QSB
Displacement 6.7L,  6700 ccm
Engine Manufacturer Cummins
Fuel Diesel
Angle α (compressor housing)45/330/335°
Angle β (turbine housing)20/180/360°
Bearing Housing3532630 (3591575, 4027249, 4027882)(Oil Cooled)(1153035450, 1900011016B) $68.00 NEW IN STOCK
Turbine Wheel3519336 (Ind. 70.05 mm, Exd. 59.9 mm, Trm 10.9, 12 Blades)(1152301435, 1100030005) $128.40 NEW IN STOCK
Comp. Wheel3599649 (3532310)(Ind. 54. mm, Exd. 76.47 mm, Trm 10.51, 7+7 Blades, Superback)(1153035401, 1200016303) $53.25 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $21.48 NEW IN STOCK
Heat shield Number3519302 (1152301340, 406400001) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Gasket Kit4032496
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel) $13.52
Gasket (Cover plate)3535001 (3922789)(Inox Steel) $14.50
Gasket (oil outlet)210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48
Manufacturer HOLSET


Applications


2004-12 Cummins Truck with QSB Engine

2004-12 Cummins Industrial  Engine  with QSB Engine
