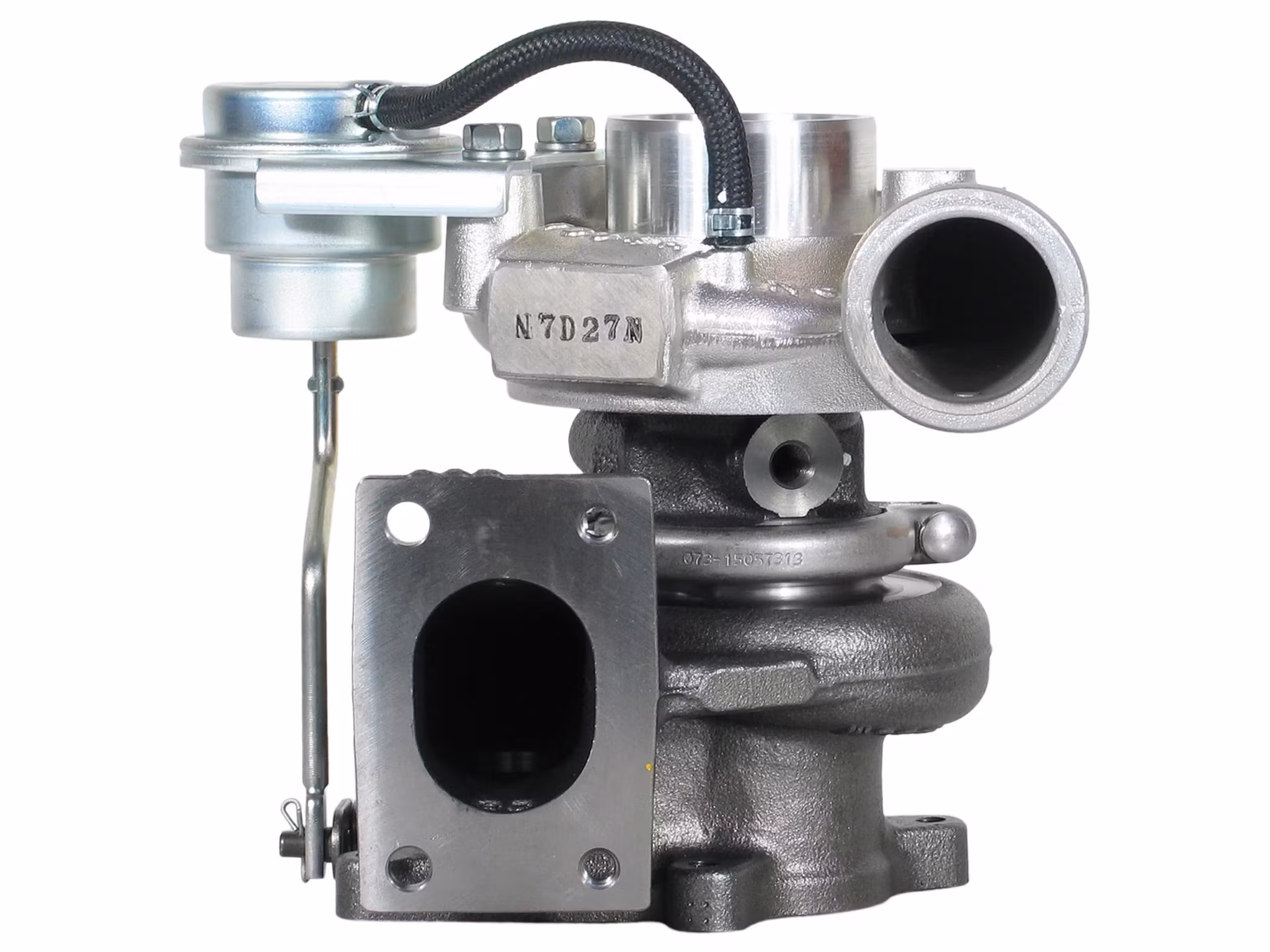

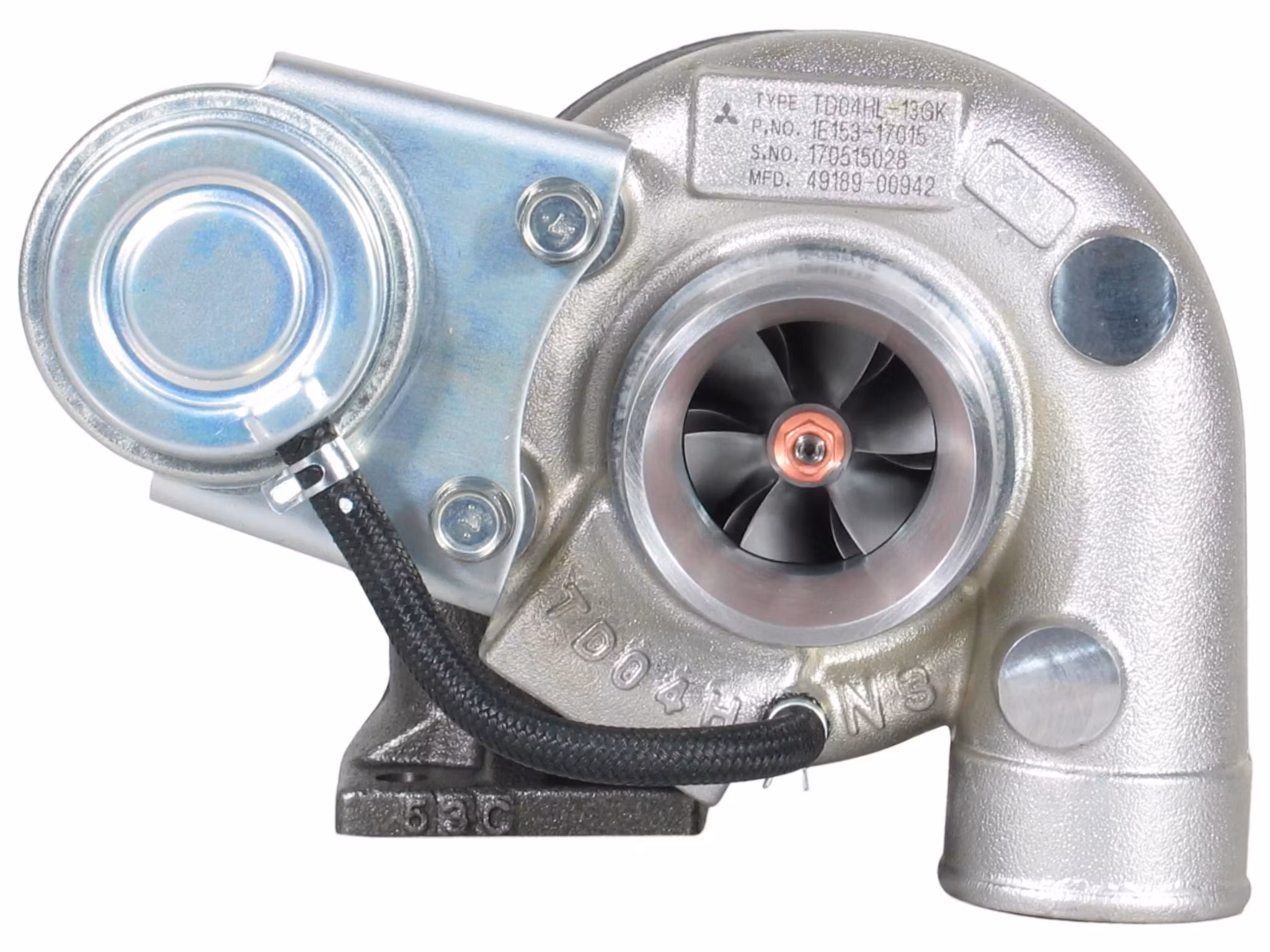

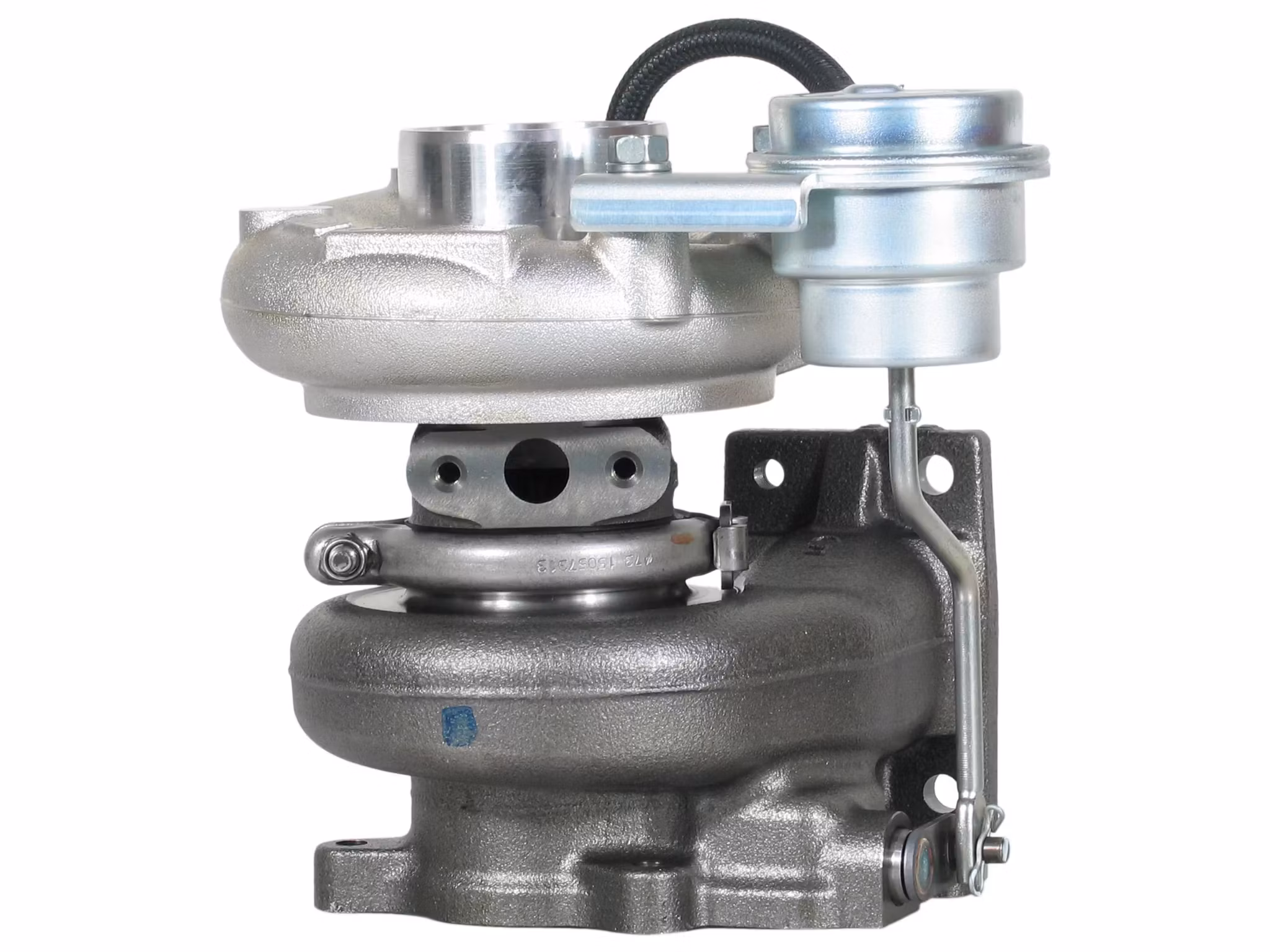

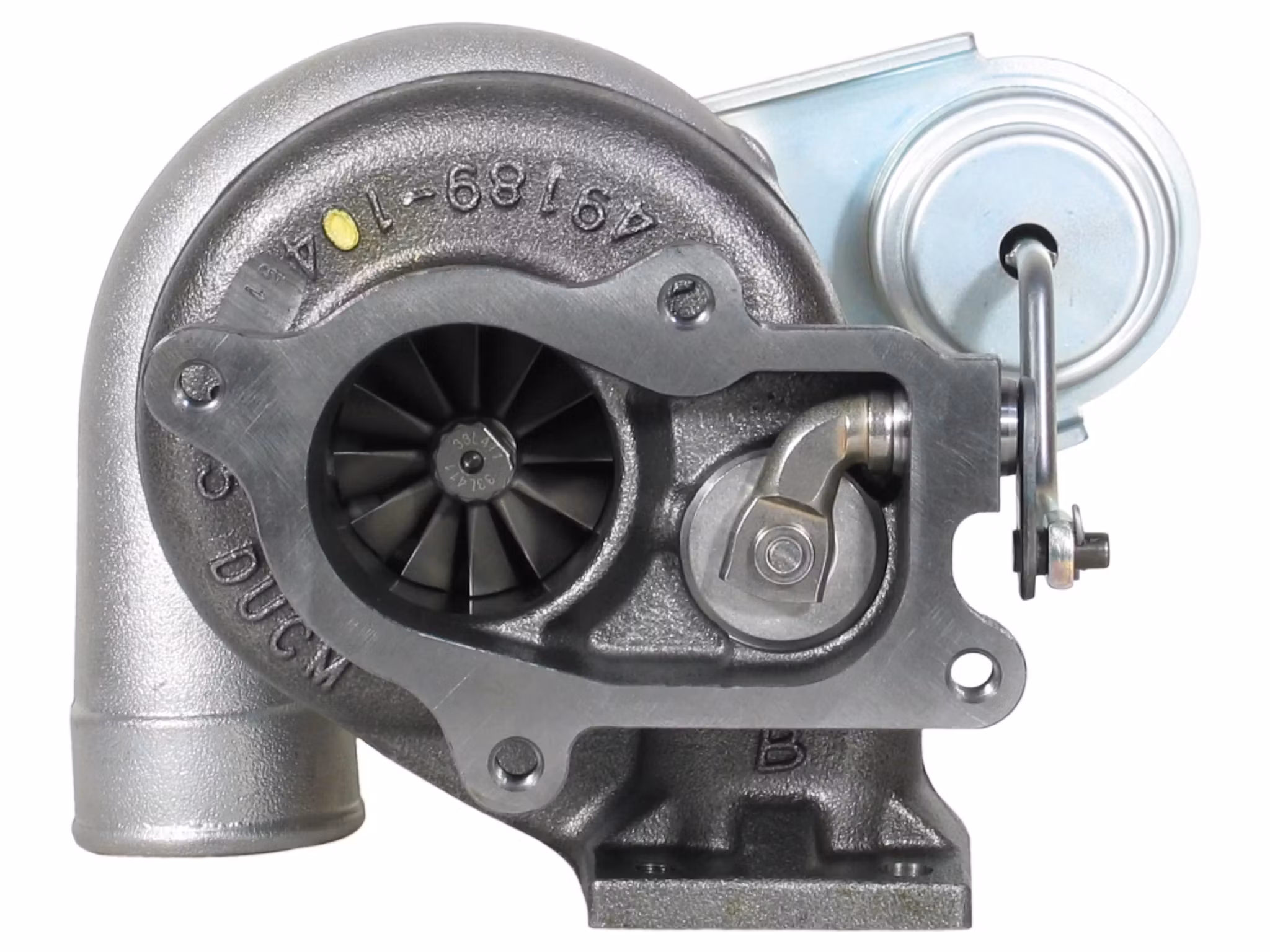

49189-00942 TD04HL-13GK Mitsubishi fabriksny originalturbo V3800 Engine
- Fabriksny originalturbo.
- 3 års garanti.
- Beställningsvara 1-3 dagars levtid.
Turbonummer / Originalnummer / Turbofakta :
| Part Number | 49189-00940 |
| Previous Version | 4918900940, 49189-00941, 49189-00942 |
| OE Number | 1700410222, 1E153-17010, 1E153-17011, 1E153-17012, 1E153-17013, 1E153-17014, 1E153-17015, 1E15317010, 1E15317011, 1E15317012, 1E15317013, 1E15317014, 1E15317015, 6691586, 6691586REM, 7017202, 7017202EF, 7017202REM |
| Year | 2004- |
| Description | Kubota Industrial, Earth Moving |
| Turbo Model | TD04HL-13GKJ, TD04HL-13GK-8.5, TD04HL-13GK |
| CHRA | 49189-08053 (3593380H, 49189-08052, 4918908053, 49189-08054)(1153027900, 1000020157) $300.00 NEW IN STOCK, MADE IN USA |
| Engine | A47G-T, V3800-DI-T-E2CB-BC-1, V3800 DI-T |
| Engine Manufacturer | Kubota |
| Displacement | 3.8L,2800 ccm |
| Fuel | Diesel |
| Bearing Housing | 49189-26400 (49189-20110)(Oil Cooled)(1900011184, 503050001) |
| Turbine Wheel | 49189-30100 (Ind. 52. mm, Exd. 45.6 mm, Trm 8.07, 12 Blades)(1401404438, 1100030028, 501050002) |
| Compressor Wheel | 49177-43400 (49189-40200)(Ind. 41.55 mm, Exd. 56.05 mm, Trm 4.87, 6+6 Blades, Flatback)(1401404413, 1200030029) |
| Back plate | 49135-00044 (49135-15405, 49173-22500)(F/Back)(1401404300) |
| Heat Shield | 49183-19300 (1401404340, 506040003) $14.64 NEW IN STOCK |
| Repair Kit | 49189-84000 (49189-80000, 49177-80400)(1401404752, 509040002) $98.00 NEW IN STOCK |
| Turbine Housing | 49189-15700 ( 49189-14992, 49189-14902) |
| Compressor Cover | 49189-50320 (49489-57190, 49489-57100) |
| Actuator | 49389-18350 (49389-18361) |
| Gasket (turbine inlet) | 210018 (4895133, 210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763(1900000025) $4.38 |
| Gasket (turbine outlet) | 210889 (Stainless Steel)(2852071) |
| Gasket (oil outlet) | 210243 $4.40 |
| Gasket Kit | 215255 (2505304)(1900100057) $30.63 |
| Manufacturer | Mitsubishi |
| Condition | NEW |
Applications
2004- Bobcat S250 Skid Steer Loader M, Kubota with V3800 Engine
