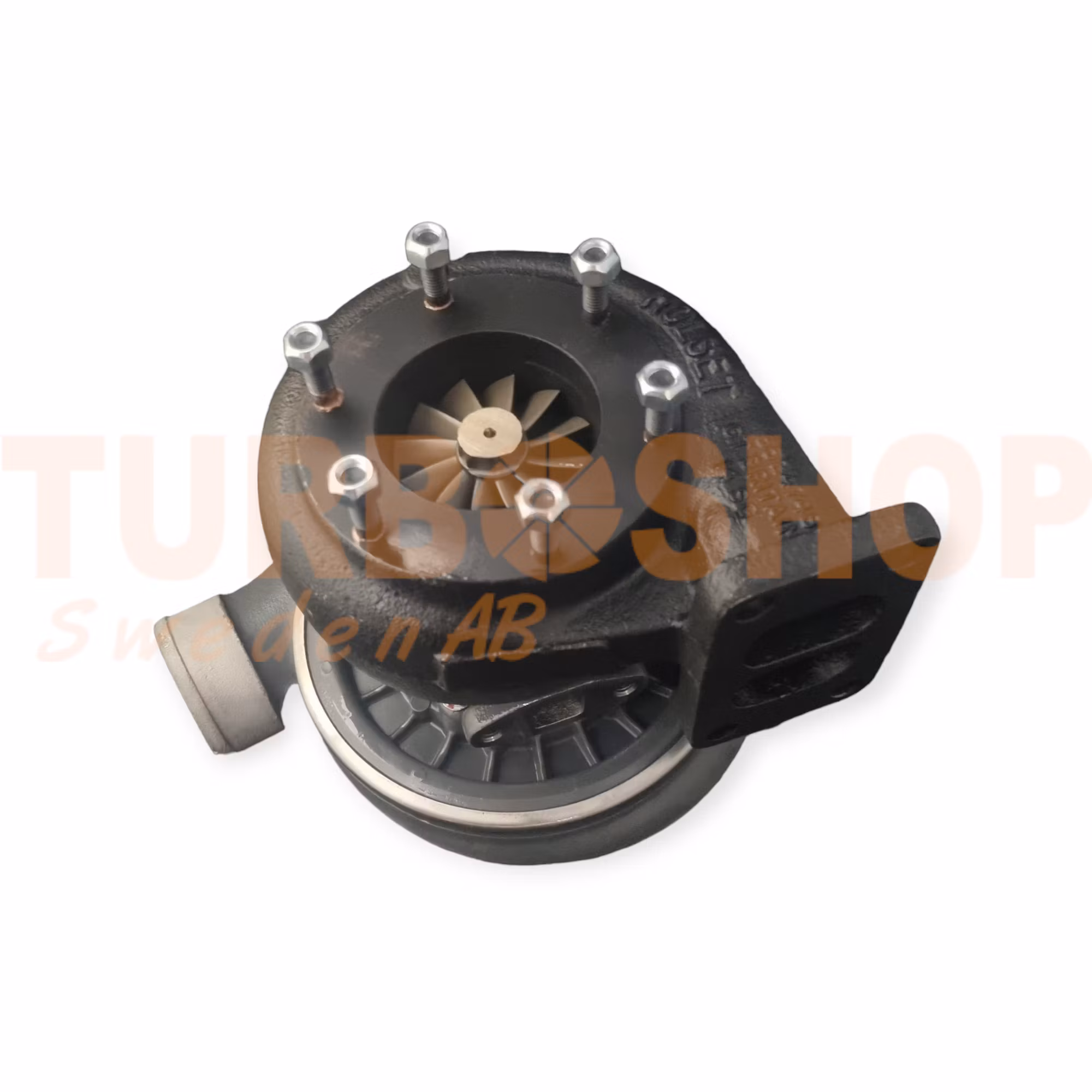

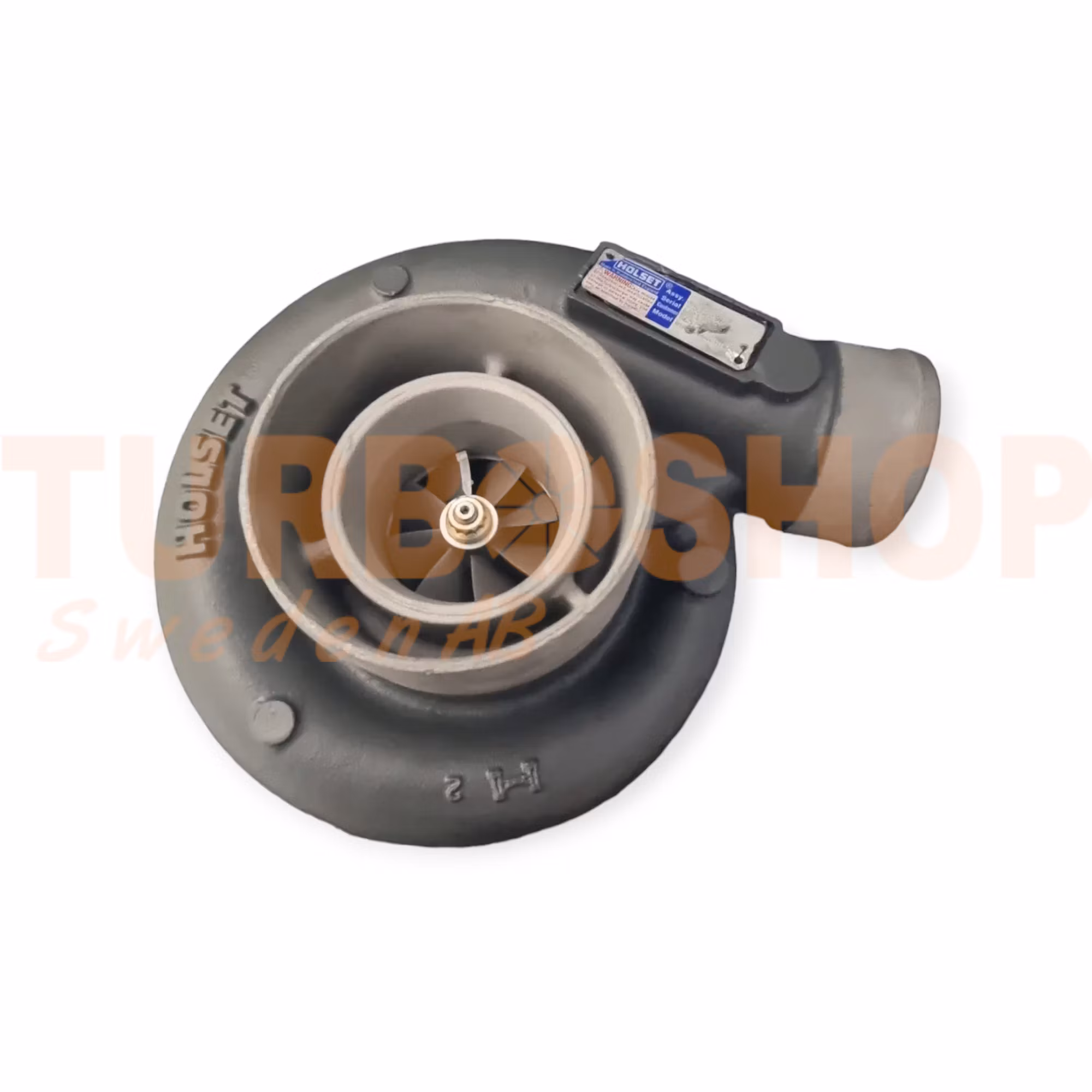

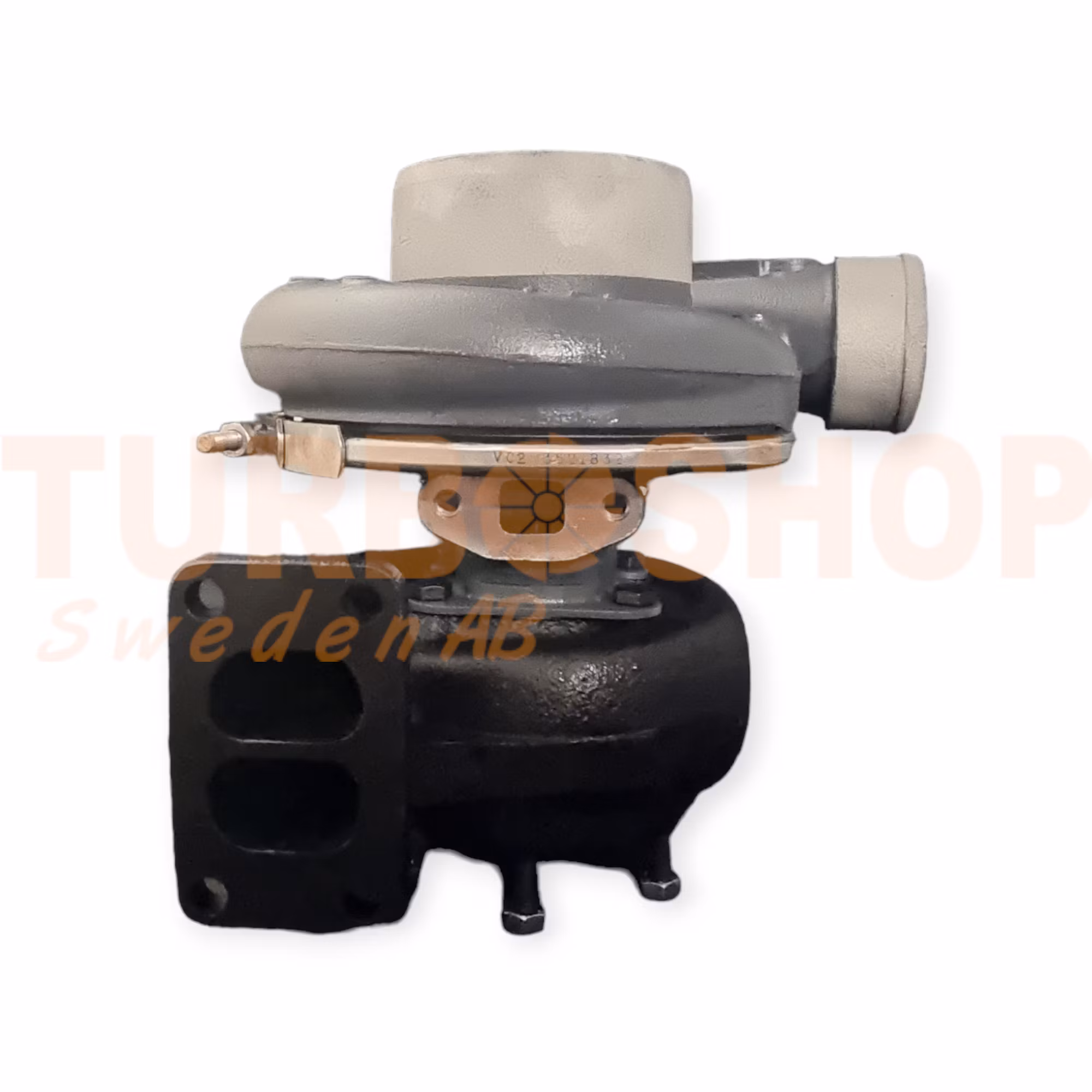

3532296 / 4033262 H1E Renoverad Holset turbo Motorkod : TXD73 ( Bytesturbo)

  • 738.67 EUR

3532296 / 4033262 H1E Renoverad Holset turbo Motorkod : TXD73   ( Bytesturbo)- Renoverad originalturbo.- 3 års garanti.- Renoverad i vår egna turboverkstad

I lager.
Lagersaldo: 1
Varenummer: 3532296BT
Del

3532296 / 4033262 H1E Renoverad Holset turbo Motorkod : TXD73   ( Bytesturbo)

- Renoverad originalturbo.

- 3 års garanti.

- Renoverad i vår egna turboverkstad utav erfaren turbotekniker.


Mycket vanlig bytesturbo på den nordiska marknaden.

Packningar + muttrar osv ingår vid köp utav denna bytesturbo.

Bytesturbo = Gamla turbon skall i retur.

Turbonummer / Originalnummer / Turbofakta :

Part Number3532296
Previous Part Number3532297
OE number865752, 3802076
Description Truck TXD83
CHRA3545711 (3545731, 3575683, 3575683H)(1000020190) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelH1E, H1E-8264AX/H14JA8
Manufacturer Part Number4033262, 4033262H
EngineTXD73
Engine Manufacturer Volvo
FuelDiesel
Angle α (compressor housing) 360°
Angle β (turbine housing)  360°
Bearing Housing3502500 (3520574, 3526562)(Oil Cooled)(1152301450, 1900011017)
Turbine Wheel3522879 (3519892, 3535359)(Ind. 76. mm, Exd. 64. mm, Trm 10.41, 12 Blades, LH) (1152301436, 1100030008)
Comp. Wheel3599646 (3525398,  3537154, 3537156)(Ind. 54. mm, Exd. 81.78 mm, Trm 6.04, 8+8 Blades,  Superback)(1152301403, 1200016658)
Back plate3522801 (1300016005)
Heat shield Number3519302 (1152301340, 2030016031)
Repair Kit4027309 (3802148)(1152301750, 5000020014)
Turbine Housing3532295 (3532295H)
Compressor Cover 3527987 (3527987H, 352798700)
Gasket (turbine inlet)3545652/4027309 (1152301750)
Gasket (turbine outlet)210226 (Stainless Steel)
Gasket oil inlet147837 (210023)
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
ManufacturerHOLSET


Applications


1992- Volvo Truck with TXD73 Engine
