880547-5002S Garrett G55-1950 88MM ( Supercore )

  • 4,308.87 EUR
  • 3,662.54 EUR

880547-5002S Garrett G55-1950 88MM ( Supercore )Den perfakta dragracingen turbon ifrån marknadsledande Garrett motion är nu här.- Mest effektiva 88MM turbon på

I lager.
Varenummer: 880547-5002S
Del

880547-5002S Garrett G55-1950 88MM ( Supercore )


Den perfakta dragracingen turbon ifrån marknadsledande Garrett motion är nu här.


- Mest effektiva 88MM turbon på marknaden.

- G55 serien byggs ifrån beställning utav Garrett motion för högsta möjliga precision.


Denna vara kan ha levtid och när ni planerar för erat bygge så är det bra att räkna med levtid.


Maila gärna in till kundservice för exakt besked  kan vara allt ifrån 2-3 dagar till 2-5 månader )


880547-5002S Garrett G55-1950 88MM ( Supercore )


Produktfakta / Fördelar ifrån tillverkaren :

G55-1950 88mm  Super Core, G55 Turbo without turbine housing.  P/N: 880547-5002S

Garrett G55 turbochargers are engineered for extreme horsepower applications like Radial vs The World and X275 Drag Racing. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G55 from its predecessor.

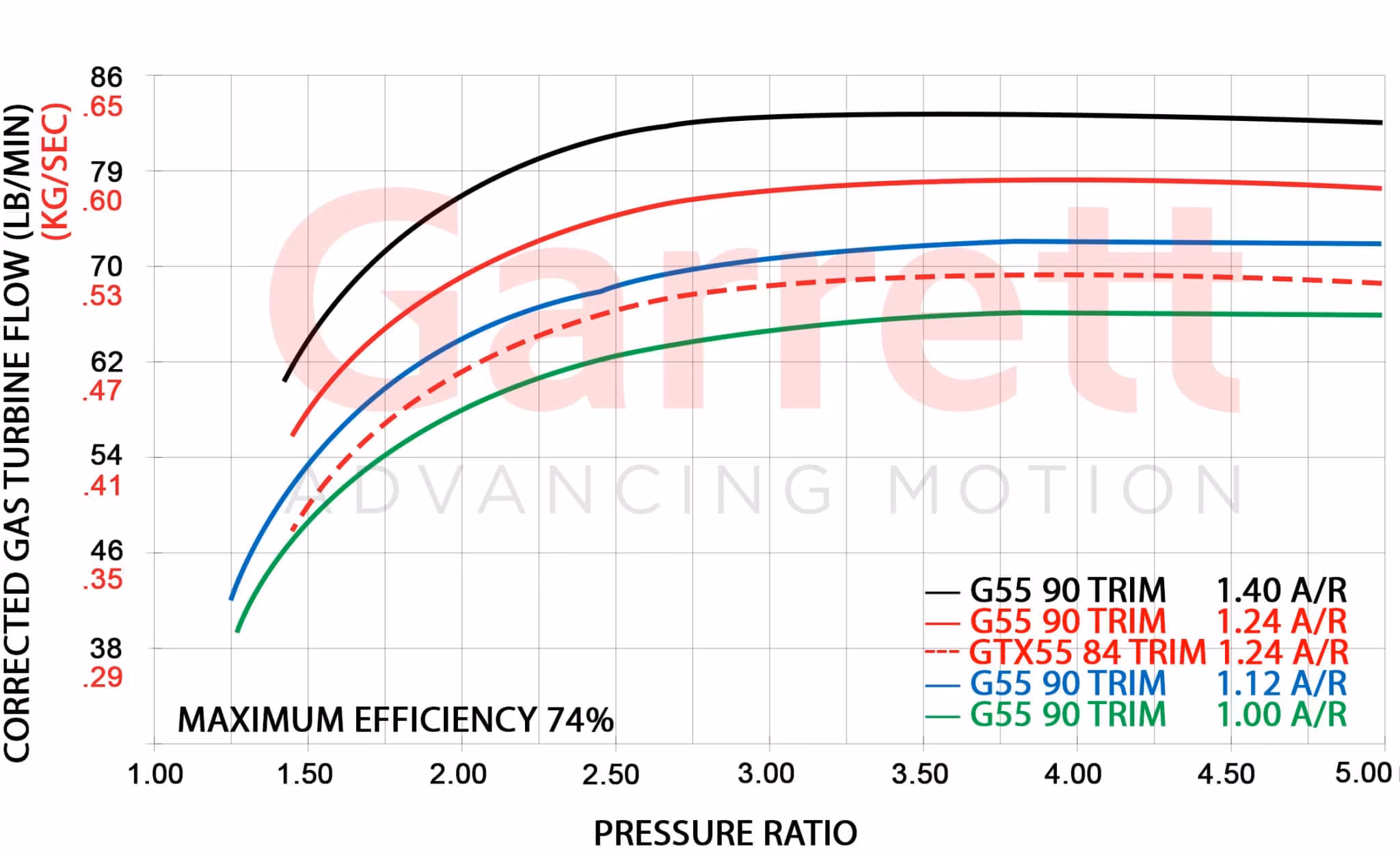

Turbine Stage: The newly engineered turbine wheel with  optimized G Series aerodynamics increases flow up to 15% more (Compared to GTX Gen II, see graph below). Larger 106mm  turbine exducer (+4mm compared to GTX55). G55 is offered with two  stainless steel V-band turbine housings in 1.24 A/R and 1.40 A/R.  The  open T6 turbine housing is also available in 4 different A/R sizes:  1.00, 1.12, 1.24, and 1.40.

Center Housing: One-piece aluminum center housing reduces supercore weight. The center housing is air cooled, features a 16mm dual ceramic ball bearing for premium rotor dynamics, and retains the oil inlet and outlet specifications from previous GTX designs.

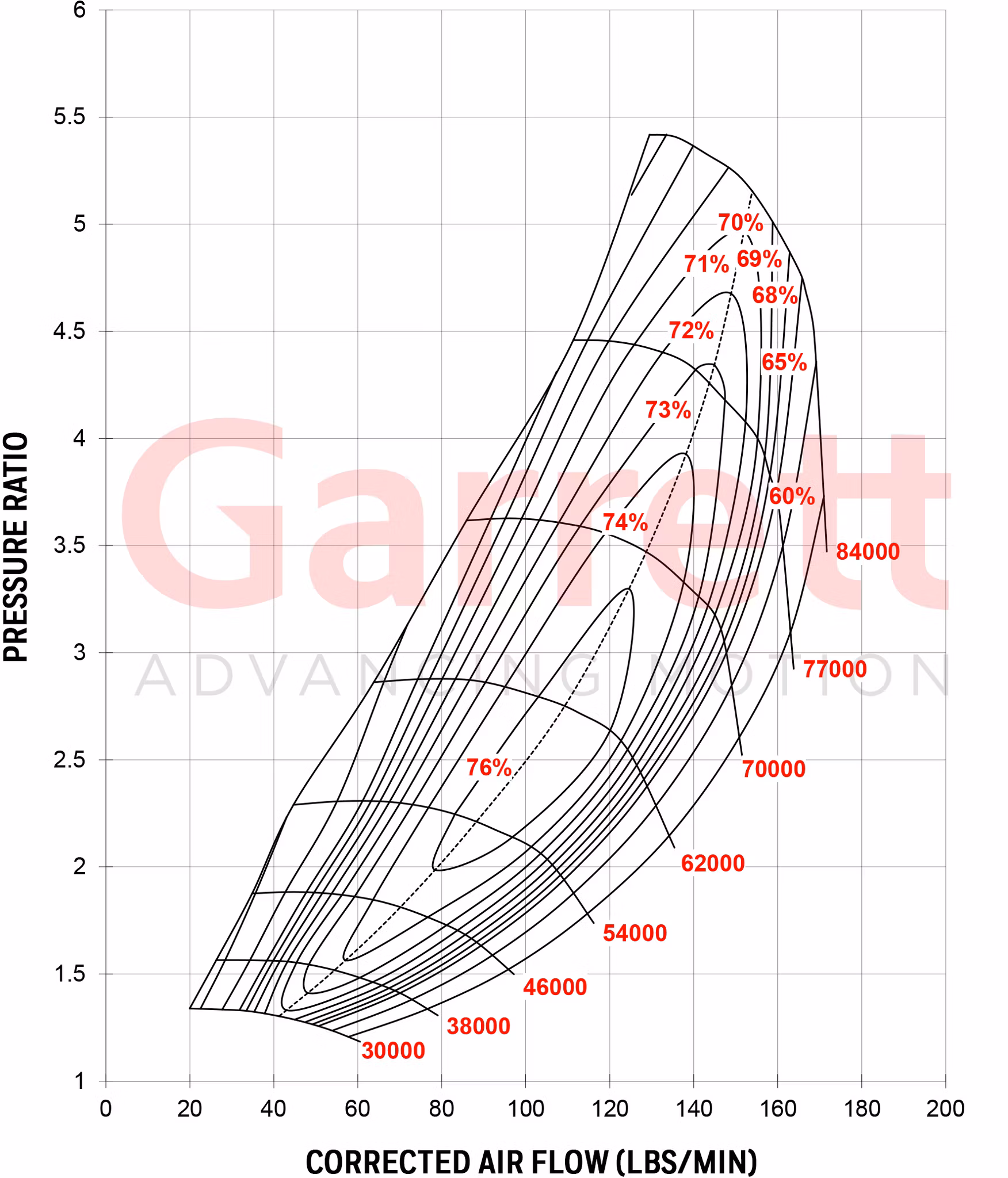

Compressor Stage: Garrett G55 compressor stages are offered in 85mm, 88mm, 91mm, 94mm, 98mm, 102mm, and 106mm inducer sizes each with their own horsepower ratings indicated in the model name.


Features:

  • Supports nearly 3000 horsepower with amazing boost response
  • 85mm, 88mm, 91mm, 94mm, 98mm, 102mm, 106mm compressor options
  • 106mm turbine exducer (+4mm compared to GTX55)
  • 15% more turbine flow (compared to GTX) see graph below
  • One-piece aluminum center housing
  • 16mm dual ceramic ball bearing cartridge
  • Outline interchangeable with GTX Gen II turbos
