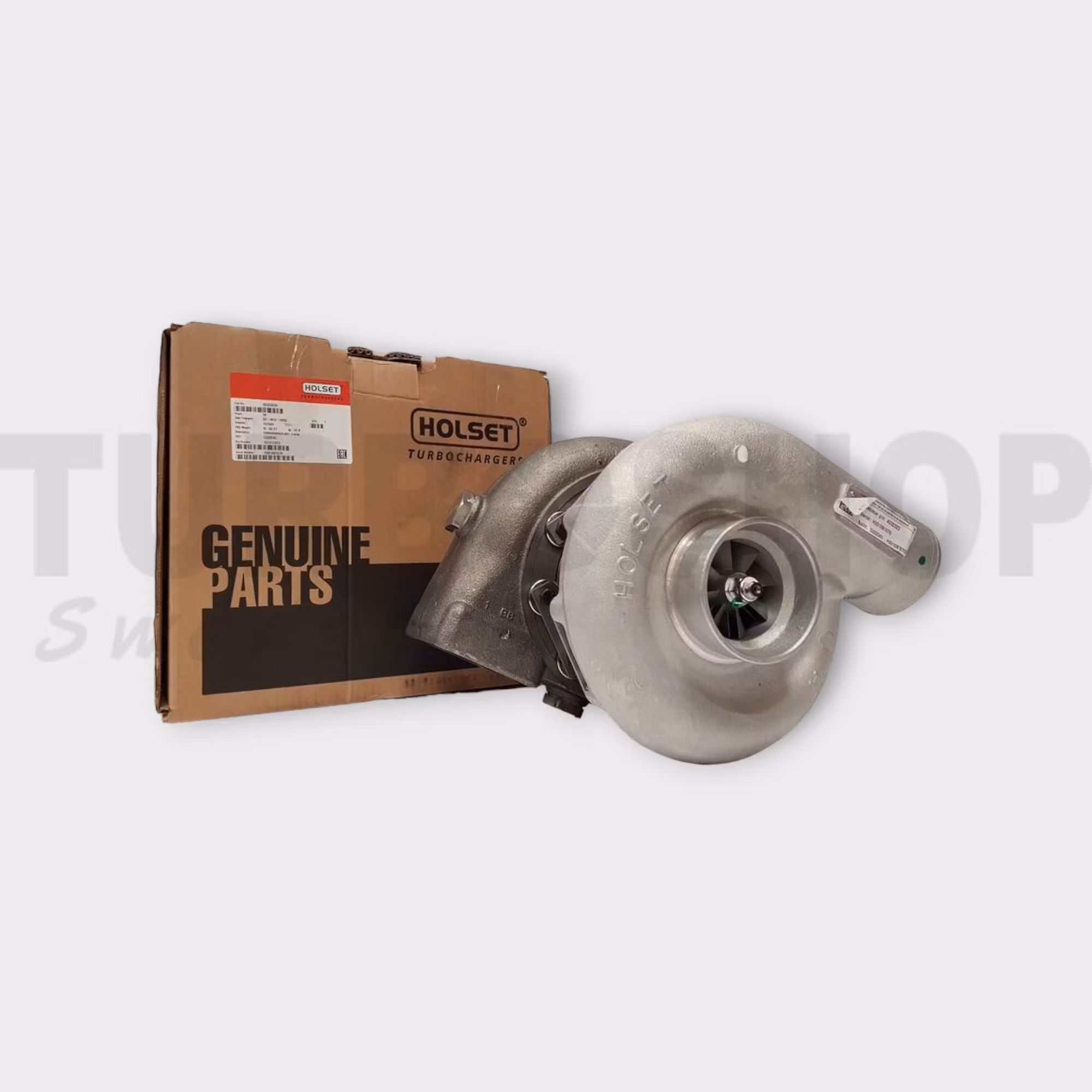

3503776 / 3591972 / 3502573 / 4032323H Holset 4LGK - Renovering utav din befintliga turbo - TAMD122A

  • 863.69 EUR

4032323H Holset 4LGK - Renovering utav din befintliga turbo.- Renovering utav  originalturbo till TAMD122A.- Renoveras utav erfarna turbotekniker med origi

I lager.
Lagersaldo: 1
Varenummer: 4032323-R
Del

4032323H Holset 4LGK - Renovering utav din befintliga turbo.

- Renovering utav  originalturbo till TAMD122A.

- Renoveras utav erfarna turbotekniker med originaldelar.

- Vi på Turboshop Sweden AB är Holset master distributör för Sverige,Norge,Danmark och hjälper gärna till.

Turbonummer / Originalnummer / Turbofakta :

Part Number3503776
Previous Part Number3591972, 3502573, 4032323H
OE number846241, 396-45920, 39645920, 3802018
DescriptionVolvo-Penta Marine Sea,  TCL  Gen Set, Lister
CHRA3519047 (3519047H) $1870.69 IN STOCK
Turbo Model4LGK809A/7.0, 4LGK267/3.00W
EngineTAMD 122A, TMD 122A, TAMD 120B,  TAMD120B, MMD122A
Fuel Diesel
Angle α (compressor housing)83°
Angle β (turbine housing)114°
Bearing Housing 3502572 (Oil-cooled) $392.95 NEW IN STOCK
Turbine Wheel3502817 (186649,  3502499, 57175, 183466, 52321202130, 53361202117)(Ind. 80.91 mm, Exd.  96.6 mm, 12 Blades)(1152303436) $285.14 NEW IN STOCK
Comp. Wheel3503703 (Ind. 64.5 mm, Exd. 101.96 mm, Trm 5.8, 8+8 Blades, Billet) $263.10 NEW IN STOCK
Back plate3759618 (3500710, 59618, 166084, 168084, 183472, 143144-0000)(1150704300, 1800016039) $18.43 NEW IN STOCK
Heat shield Number61343 (3761343) $99.10
Repair Kit3545661 (3545662)(843424)(1150040750) $69.00 NEW IN STOCK
Turbine Housing (Water-Cooled)62253    $1351.59
Compressor Cover3502384    $292.41
Turbine Housing AR3.00
Gasket oil inlet409038-0001 (132040, 7M7273) $13.20
Gasket (oil outlet)210018 (129120)(Paper) $3.22
Gasket (turbine inlet)210019 (409266-0004, 210019-0000, 201049, 409266-0003) $3.22
Gasket Kit(2090505397)
ManufacturerHOLSET


Applications


1989-09 Volvo-Penta Marine with TMD 122A, TAMD 120B Engine

1989-09  Volvo-Truck   with TMD 122A, TAMD 120B Engine
