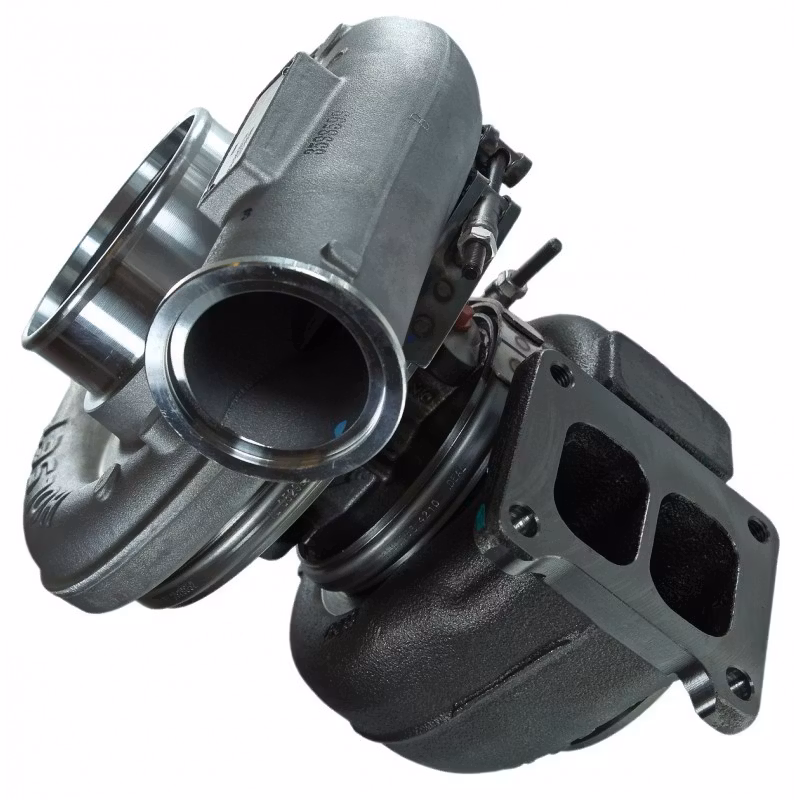

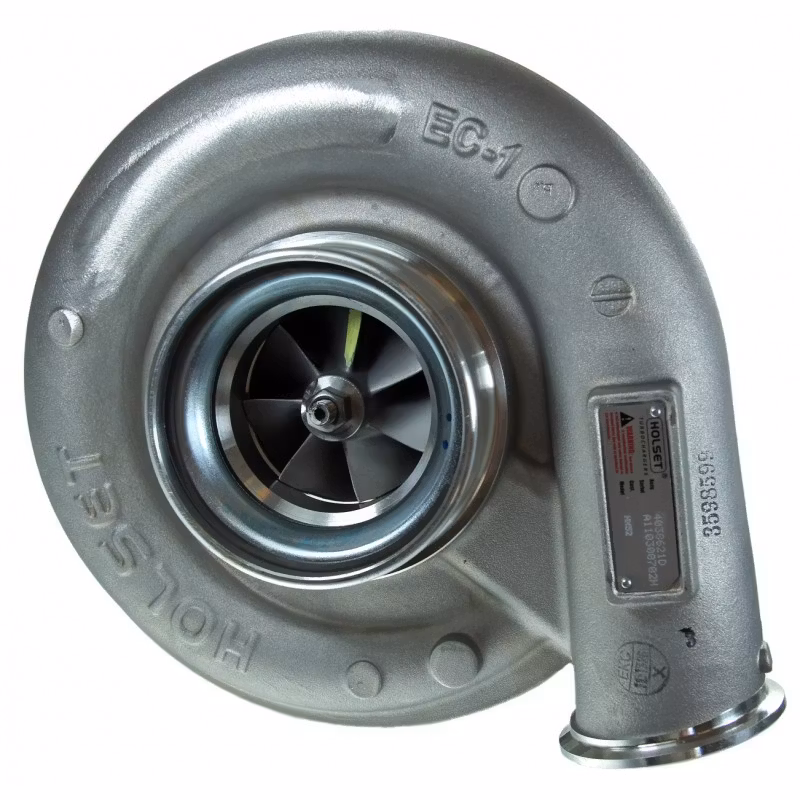

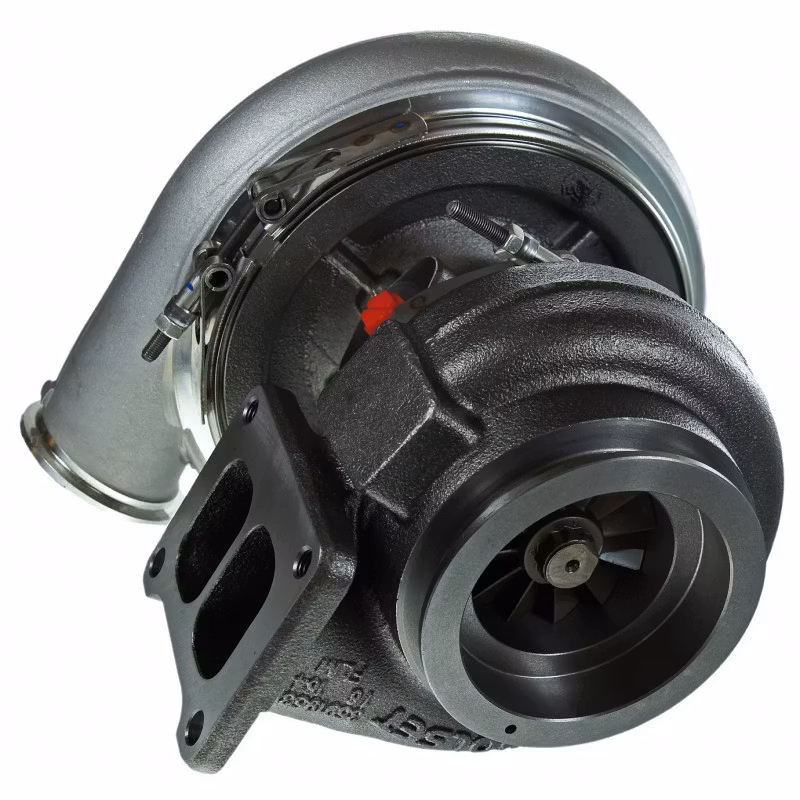

4031123H Holset fabriksny HX52
( Beställningsvara 2-3 dagars levtid ) - Går alltid att få på 1-2 dagar emot fraktkostnad.
Holset fabriksny - Fabriksny turbo i fabrik hos Holset / Cummins,Vi på Turboshop är stolt distributör för Holset & lagerför stort sortiment ifrån dom.
Scania Originalnummer : 571547, 1538374, 570163, 1409514
Turbonummer / ersättningsnummer : 3592199, 3592199-D, 4038620, 4038620-D, 4038621, 4031123, 4031123H,
Turbonummer / Turbofakta / Originalnummer :
| Part Number | 4038621 |
| Previous Version | 3592199, 3592199-D, 4038620, 4038620-D, 4038621, 4031123, 4031123H, |
| OE number | 571547, 1538374, 570163, 1409514 |
| Description | 124 Truck |
| CHRA | 4031343 (4030907, 4030906, 4031343H)(1153052902, 1000020206) |
| Turbo Model | HX52-B98K66RV/A84K83PAE16N, HX52 |
| Engine | DT12-02, DT12-06, DT1202/06 |
| Engine Manufacturer | Scania |
| KW | 346/470 |
| Fuel | Diesel |
| Angle α (compressor housing) | 308º |
| Angle β (turbine housing) | 165º |
| Bearing Housing | 4038619 (Oil Cooled)(1153052450) |
| Turbine Wheel | 4038181 (Ind. 70. mm, Exd. 84.2 mm, Trm 9.87, 12 Blades)(1153052436, 1100016125) |
| Comp. Wheel | 3593629 (4040739, 4040740, 4041666)(Ind. 65.12 mm, Exd. 97.66 mm, Trm 6.09, 7+7 Blades, Superback)(1200016217) |
| Back plate | 3528096 (352809600)(1153055300, 1800016024 |
| Heat shield Number | 3533038 (3529846)(1153052340, 2030016003) |
| Repair Kit | 3575181 (3580762)(1153055750, 5000020025) |
| Turbine Housing | 4039512 |
| Compressor Cover | 3591597 |
| Gasket Kit | 3545576 (201049, 215132, 3519763) $15.35 |
| Manufacturer | HOLSET |
Applications
2004-10 Scania Truck 124 with DT1202/06 Engine
