49135-00120 TF035HM-10T / 4 Fabriksny turbo Isuzu & Kvicksilver Marin 1.7L

  • 1,030.99 EUR

49135-00120 TF035HM-10T / 4 Fabriksny Mitsubishi turbo till Isuzu & Kvicksilver Marin 1.7L- Fabriksny originalturbo.- 3 års garanti.- Monteringssats medfölj

I lager.
Varenummer: 49135-00120
Del

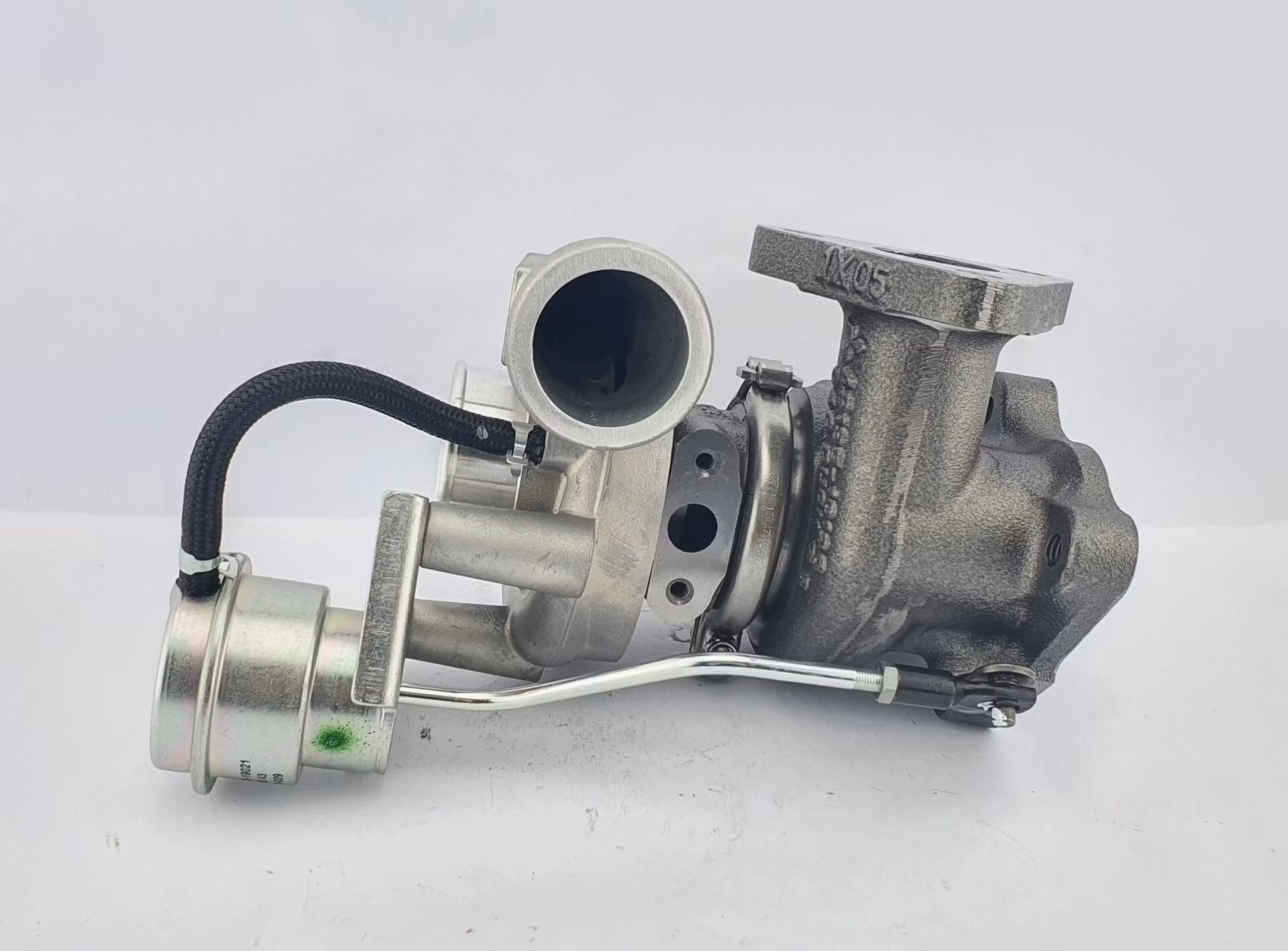

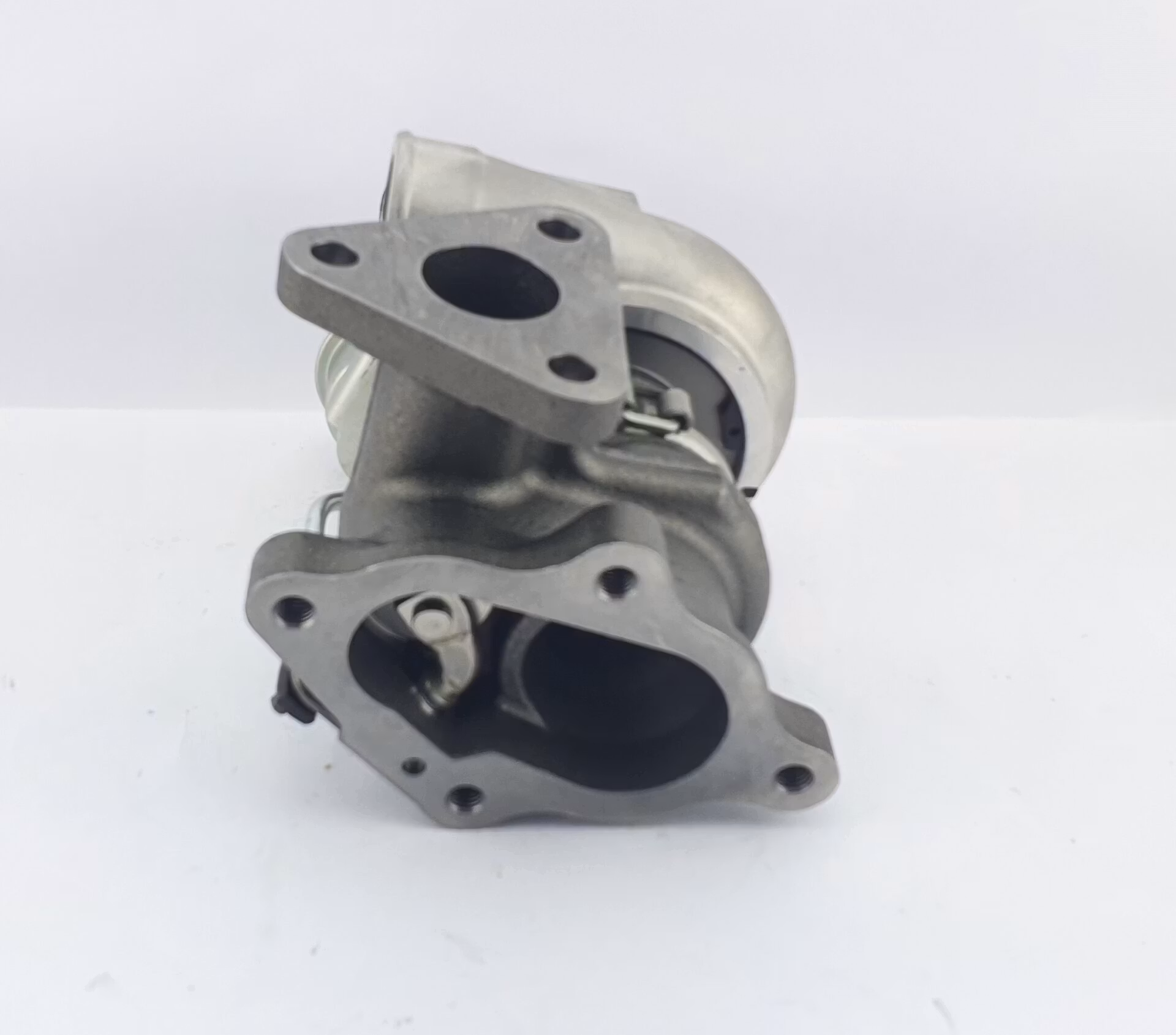

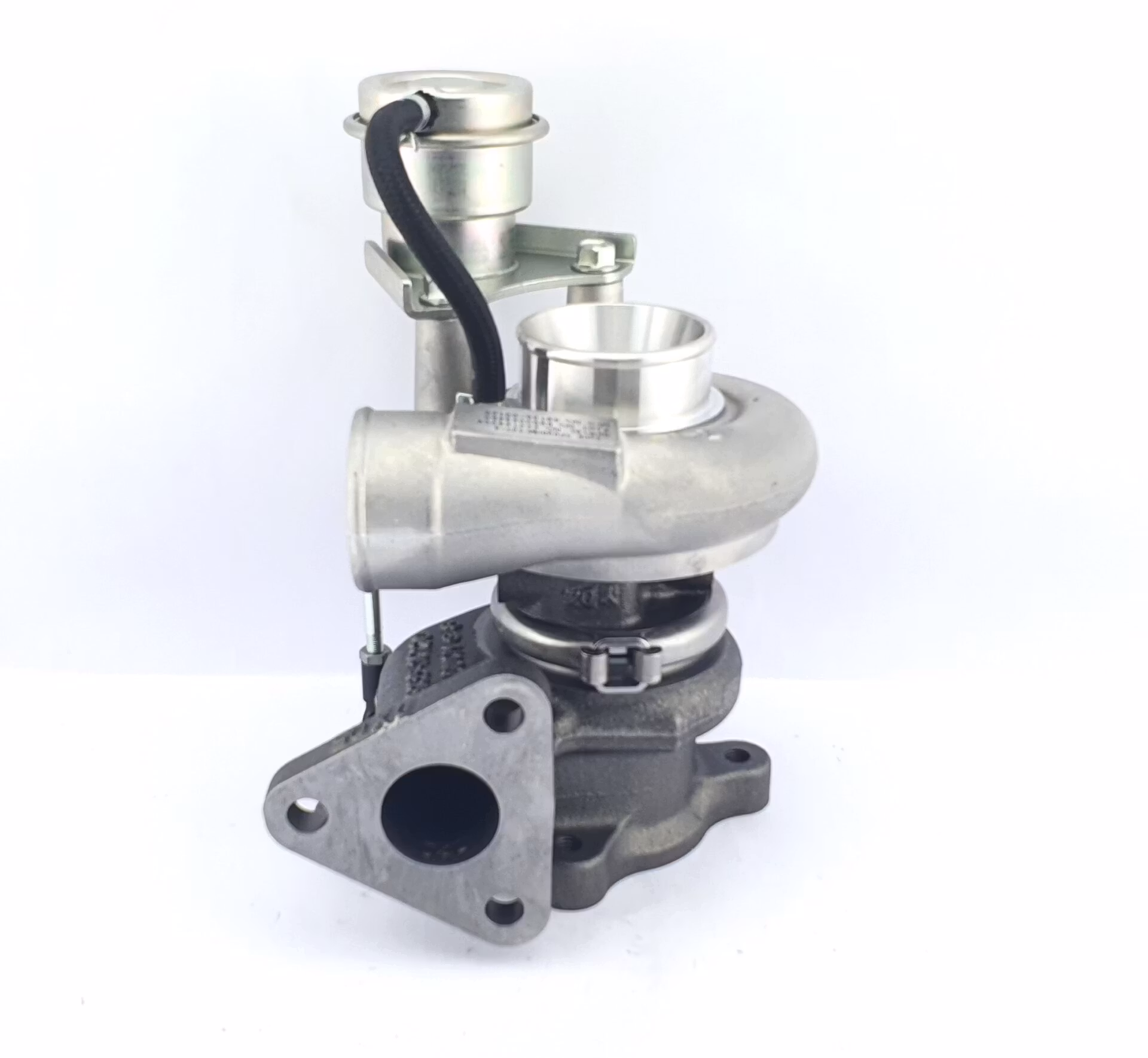

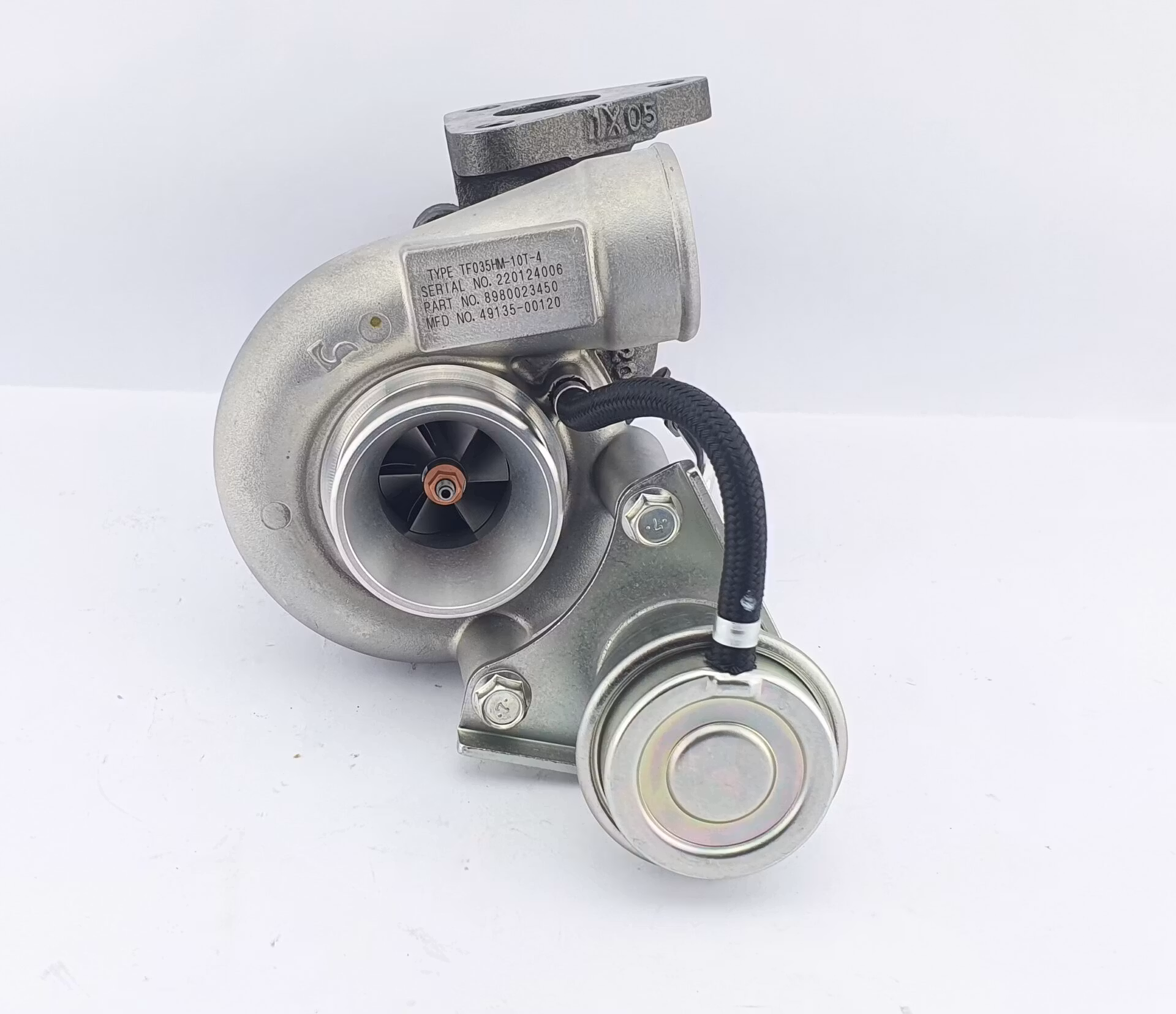

49135-00120 TF035HM-10T / 4 Fabriksny Mitsubishi turbo till Isuzu & Kvicksilver Marin 1.7L

- Fabriksny originalturbo.

- 3 års garanti.

- Monteringssats medföljer vid köp online.




BränsleDiesel
SkickNy
KW65, 74
VarumärkeIsuzu, Kvicksilver
ModellMarin
Motorkapacitet1,7L
Motormärke4EE
Turbo varumärkeMitsubishi
Turbo-modellTFO35HM-10T / 4


Originalnummer / Mercury / Isuzu : 8972476494, 8972476493, 8972476492, 8980023450,898148

Turbonummer / ersättningsnummer tillverkaren Mitsubishi : 49135-00100, 4913500100, 49135-00101, 4913500101, 49135-00102, 4913500102, 49135-00120, 4913500120


Turbofakta :

Part Number49135-00120
Previous Part Number49135-00102,  49135-00112
OE number8980023450, 8972476494
DescriptionMercury Marine
CHRA49135-08710 (4913508710, 49135-08711)(1401635910) $250.00 NEW IN STOCK, MADE IN USA
Turbo ModelTFO35HM-10T/4
Engine Manufacturer Isuzu
Displacement 1.7L, 1700 ccm
Engine4EE
Fuel Diesel
Bearing Housing 49177-25100 (Oil Cooled)(1401404450, 1900011152) $69.92 NEW IN STOCK
Turbine Wheel49135-30100 (Ind. 43.2 mm, Exd. 36.09 mm, Trm 6.2, 11 Blades)(1401635435, 1100030027, 1100016197)  $87.60 NEW IN STOCK
Comp. Wheel49177-44200 (Ind. 35.5 mm, Exd. 49. mm, Trm 4.49, 6+6 Blades, Superback) $49.62 NEW IN STOCK
Back plate49135-00044 (49135-15405, 49173-22500)(1401635300, 1800016016) $15.94 NEW IN STOCK
Heat shield Number49135-19100 (49135-00020)(1401404342, 1401404340)(8 mm Deep) $14.64 NEW IN STOCK
Repair Kit49177-80410 (1401404755) $98.80 NEW IN STOCK
Turbine Housing AR4
Actuator49135-19020
Settings Waste gate (pressure) 0.232-0.235/0.235-0.245  bar
Settings Waste gate (lift rod)1.00/5.00  mm
Gasket (turbine inlet)210346  (Stainless Steel)  $12.00
Gasket (turbine outlet)210568  (Stainless Steel)   $28.00
Gasket (oil outlet) 210243 (Gasket Paper) $3.25
ManufacturerMitsubishi


Applications

2003- Isuzu Mercury Marine, Cruiser With 4EE Engine
