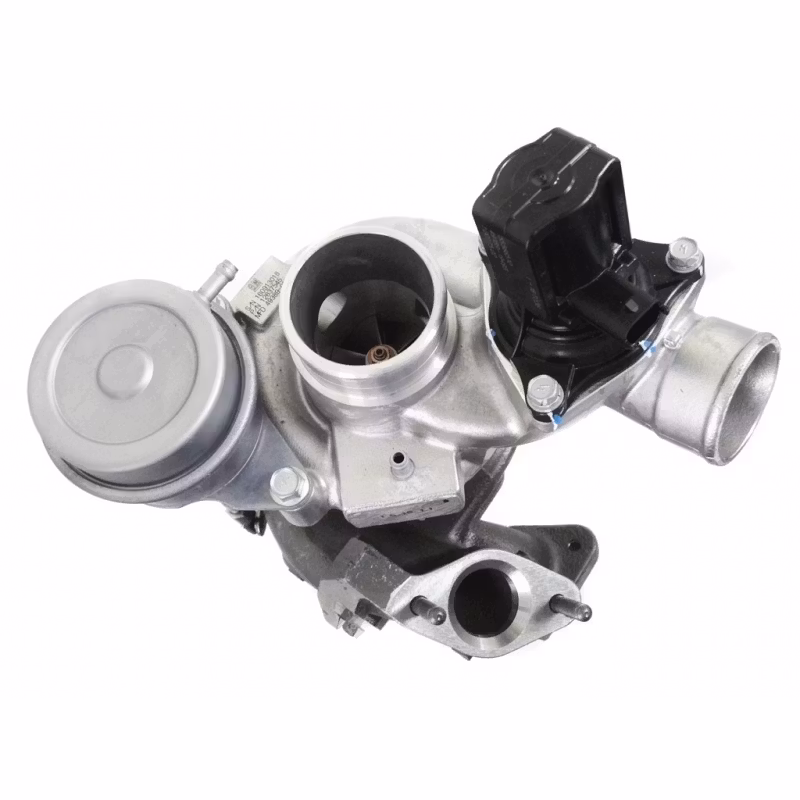

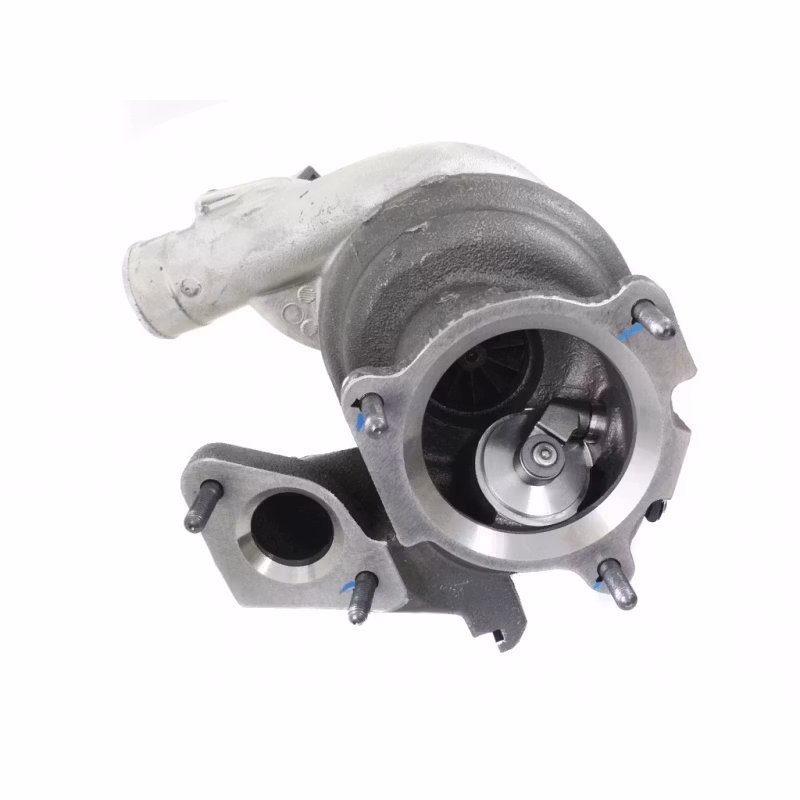

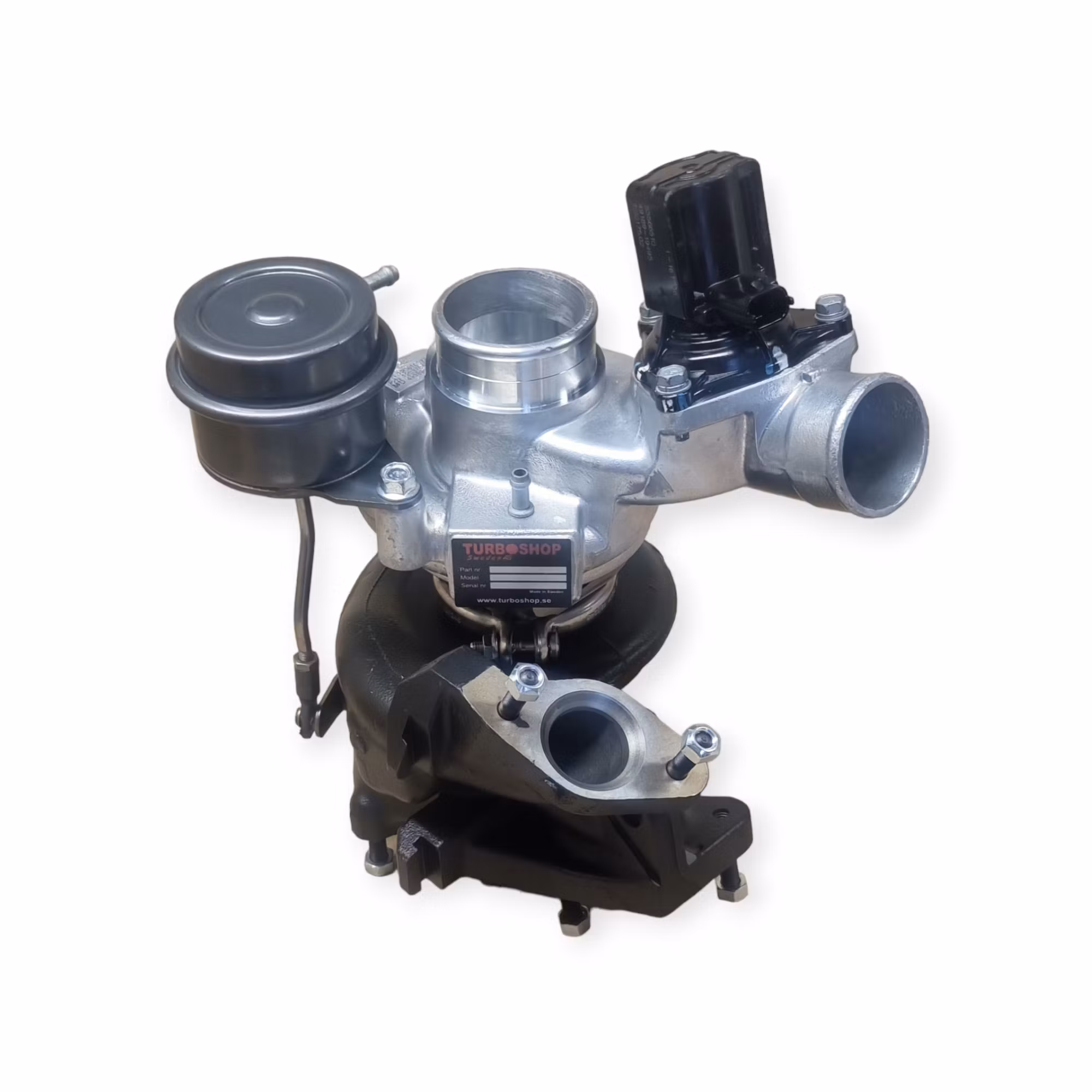

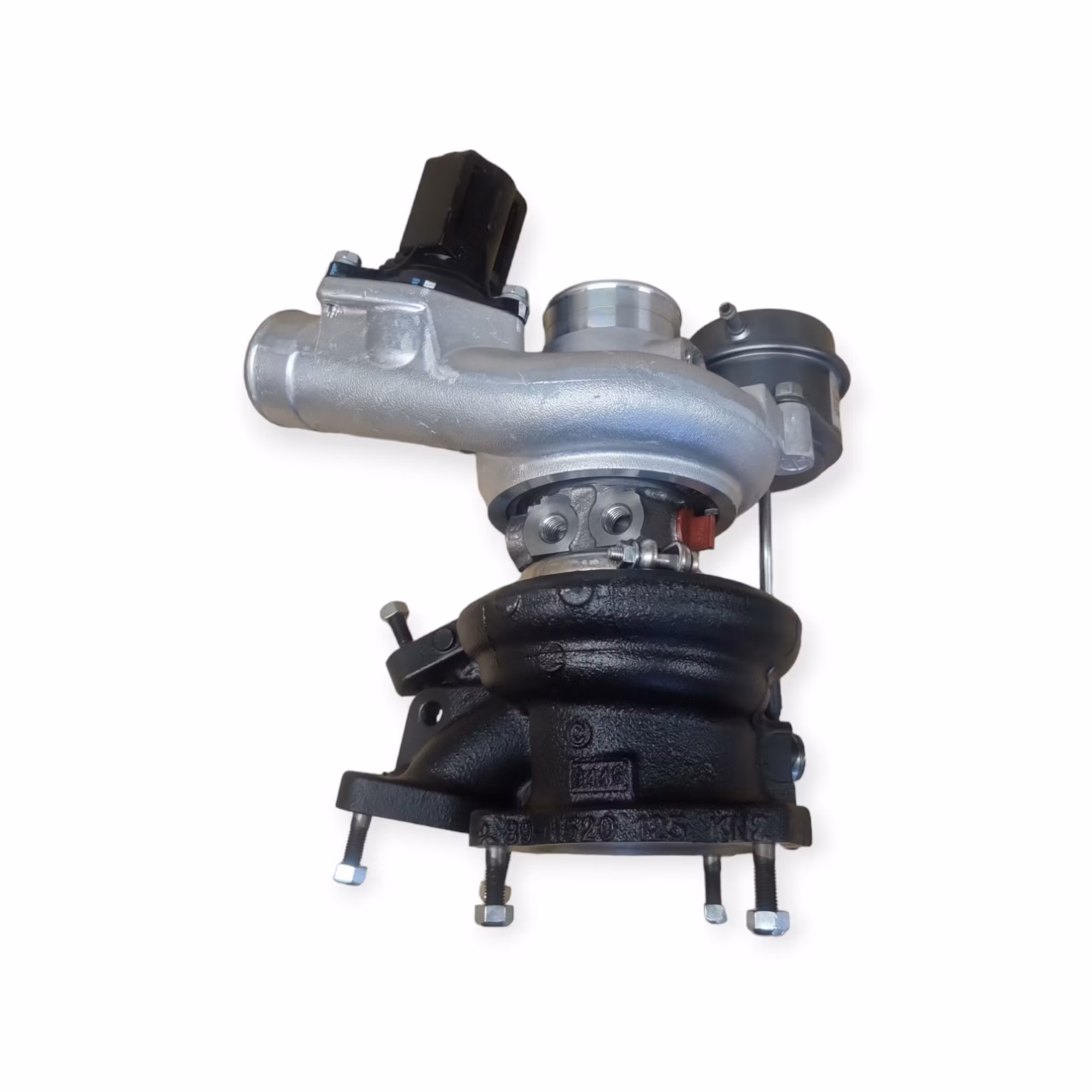

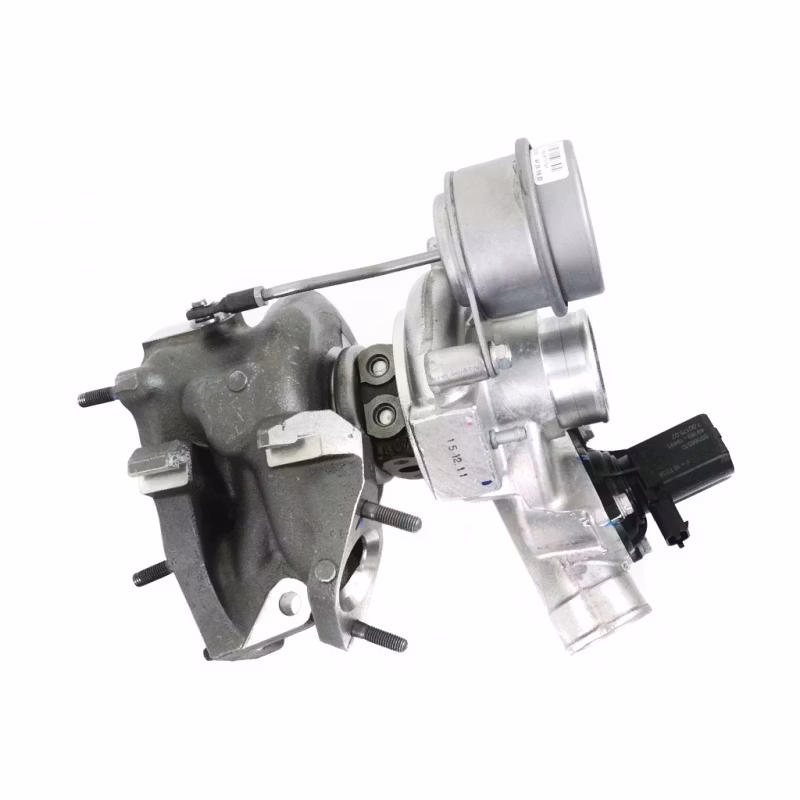

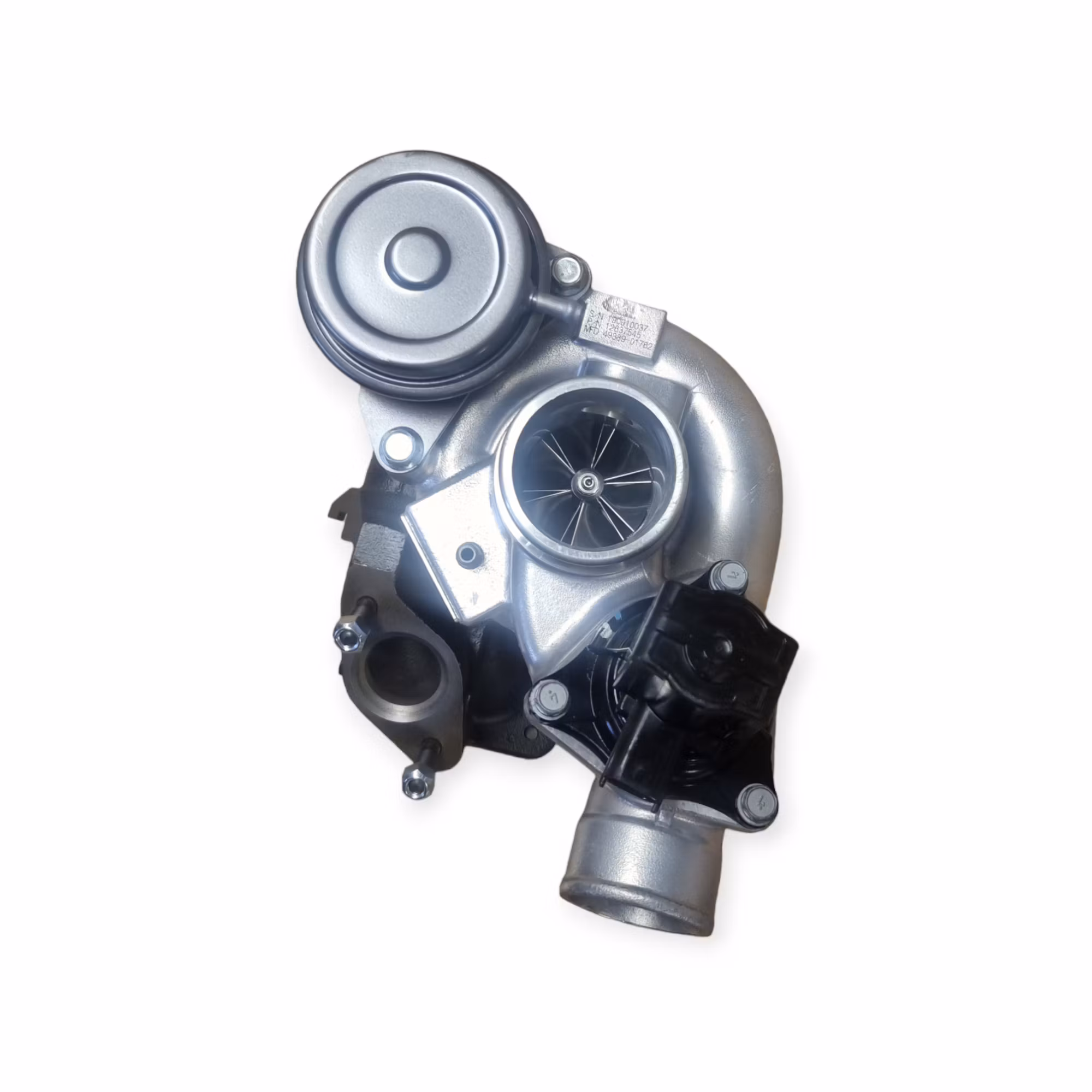

49389-1760 / 49389-01762 Mitsubishi TD04HL - 22T Saab / Opel / Cadillac V6 ( 22T Billet upgrade )
- 912.04 EUR
49389-1760 / 49389-01762 Mitsubishi TD04HL - 22T Saab / Opel / Cadillac V6 ( 22T Billet upgrade ) Saab V6 22T den perfekta bolt on uppgraderingen.Renoverad
Varenummer:
49389-01762-22T-Billet
49389-1760 / 49389-01762 Mitsubishi TD04HL - 22T Saab / Opel / Cadillac V6 ( 22T Billet upgrade )
Saab V6 22T den perfekta bolt on uppgraderingen.
Renoverad originalturbo + uppgraderad kompressordel 22 billet upgrade + förstärka lager + special turbinaxel.
- Mindre kärna = Snabbare spool up.
- Längre blad = Hänger med längre upp i registret samt högre effekuttag.
- Flödar 12-15% mer på samma storlek. ( Billet + race design kompressorhjul )
- Möjligt effektuttag 390-430 hk.

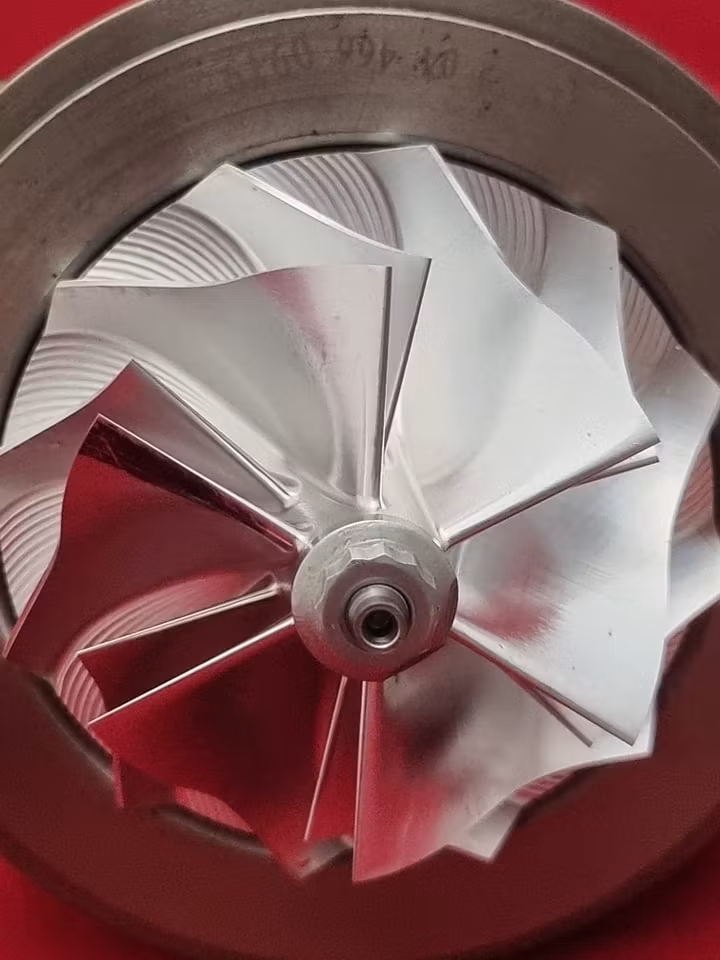

- Kompressorhjuls storlek : 48.50/61.01mm 6+6blades ( 22T )
- Turbinaxel med mindre blad samt annan design för att minska mottryck.
- Förstärkt axiallager.
Finns även som original 19T relaterad nedan.
Packningar medföljer.
Turbonummer / Ersättningsnummer tillverkaren Mitsubishi :
4938901700 4938901710 4938901720 4938901730 4938901740 4938901742 49389-01700 49389-01710 49389-01720 49389-01730 49389-01740 49389-01742 49389-01760 49389-01761 49389-01762 49389-01763 49389-01780
4938901760 4938901761 4938901762 4938901763 4938901780
Originalnummer Opel / Saab / Cadillac
55557012 55564299 12630851 55569052 12637547 55569051 55585073 5860017 5860037 860145 861084 95519824
12630850 12637545 12638895 55563464 860100 860115 860243
TD04HL / Wastegate turbo technology / Vacuum actuation + Electric air valve
Passar följande fordon :
Opel Insignia 2.8 V6 [2008 +]
Saab 9-3 2.8T V6 [2006 +]
Saab 9-5 2.8T V6 [2008 +]
Cadillac SRX 2.8 [2010 +]
Cadillac CTS 2.8 [2012 +]
Motorkoder denna turbo passar till :
A28NET, A28NER, HFV6 LAU / Petrol, Gas / 2792 ccm, 2.8 litres, 6 Cylinders, V6 / 256 hp (191 kW; 260 PS), 300 hp (224 kW; 304 PS), 321 hp (239 kW; 325 PS)
Turbonummer / Originalnummer / Turbofakta :
Part Number | 49389-01760 |
Previous Version | 4938901760, 49389-01761, 49389-01762, 49389-01763 |
OE Number | 12630850, 12638895, 12637545, 860100, 860115, 860243, 090608027, 55563464, 55566510 |
Year | 2008-13 |
Description | Opel, Saab, Cadillac Cadillac CTS SRX |
Model | Insignia, 9-5 SRX |
Turbo Model | TD04HL-19TK3-12.5 |
CHRA | 49389-08160 (4938908160, 49389-08140) $650.00 NEW IN STOCK |
Capacity | 2.8L, 2792 ccm, V6 Cylinders |
KW | 256/191/260/300/224/304/321/239/325 HP |
Fuel | Gas |
Engine Code | A28NET, A28NER, HFV6 LAU |
Bearing Housing | 49189-20080 (Water cooled) NEW IN STOCK |
Turbine Wheel | (Ind. 45.65 mm, Exd. 52.1 mm, Trm 8.55, 12 Blades) NEW IN STOCK |
Comp. Wheel | (Ind. 46. mm, Exd. 58. mm, Trm 7.65, 6+6 Blades, Superback) $129.90 NEW IN STOCK |
Back plate | N/A |
Heat shield Number | N/A |
Repair Kit | 49189-80010 (49177-80410) $98.80 NEW IN STOCK |
Turbine Housing | 49389-16552 |
Compressor Cover | 49389-56610 (49389-56600) |
Actuator | 49389-18741 (49389-18711, 49389-18712, 49389-18742) |
Manufacturer | Mitsubishi |
Condition | Rebuilt |
Applications
2010-13 Cadillac CTS with HFV6 LAU Engine
2010-12 Cadillac SRX with HFV6 LAU Engine
2006-11 Saab 9-3 2.8T V6 with B284 Engine
2008-12 Saab 9-5 2.8T V6 with A28NET Engine
2008-12 Opel Insignia 2.8T V6 Turbo with A28NET Engine
