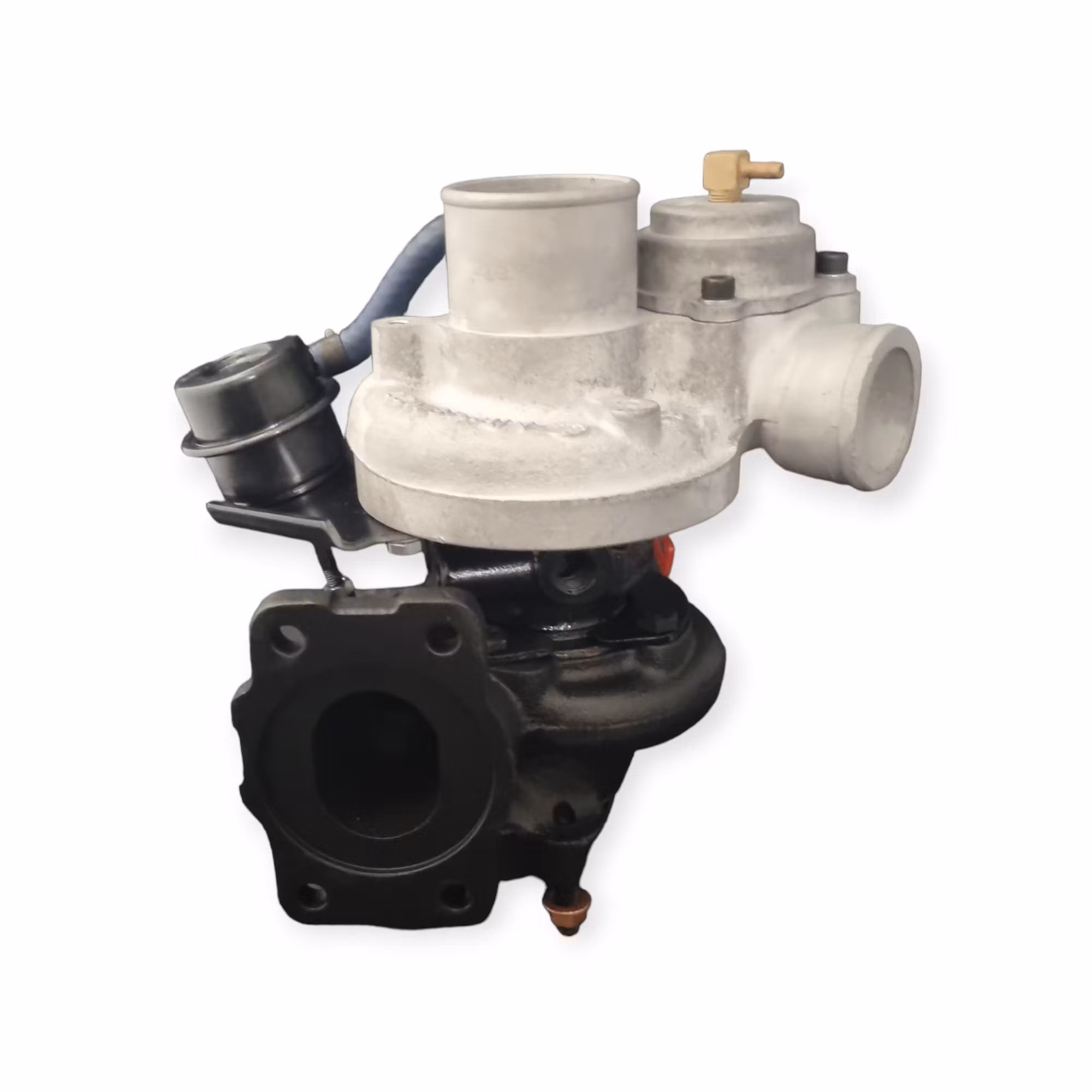

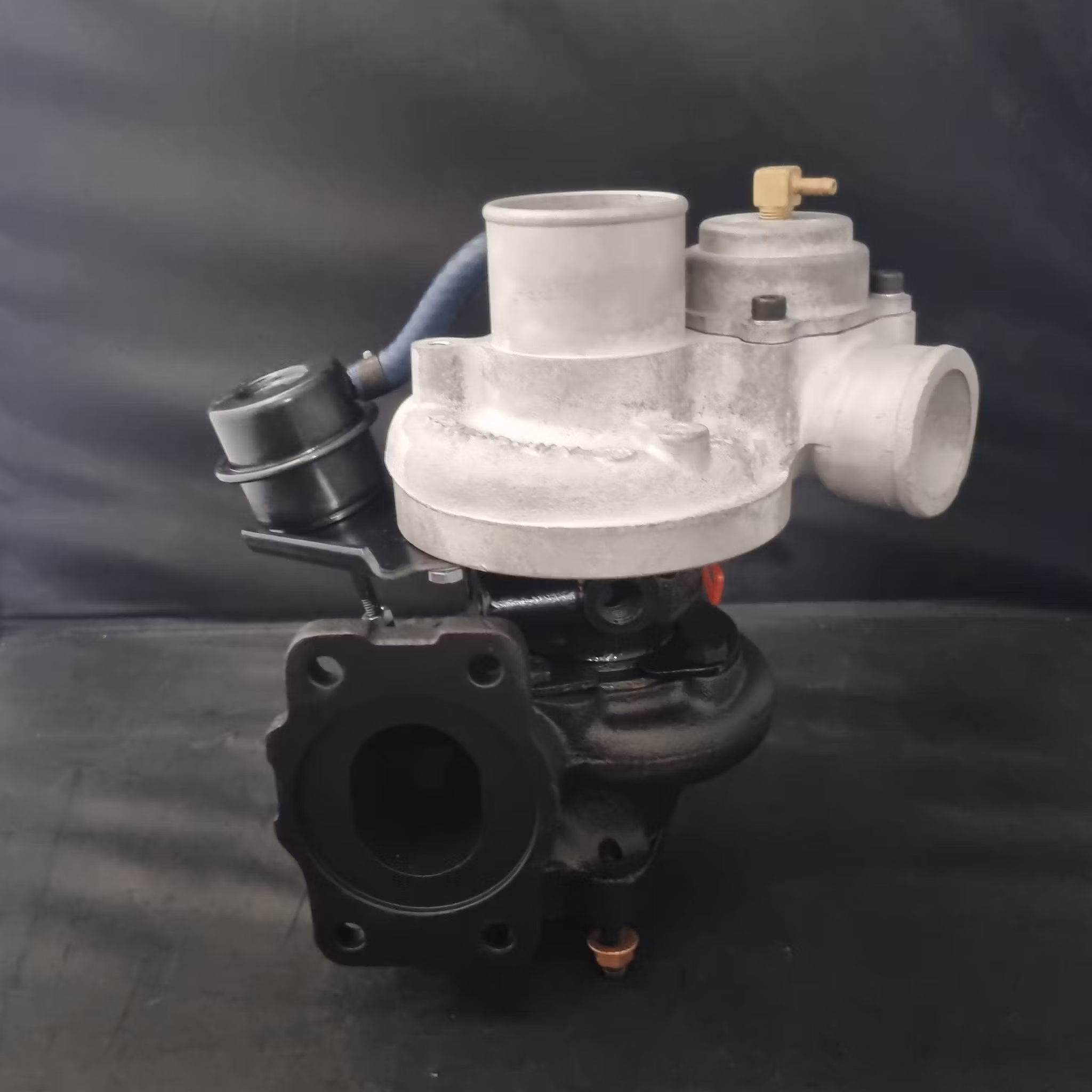

465169-5001S / 465169-5003S Garrett TB2543 Originalnummer : 5003712, 3517642 , 8603518 ( Renovering utav din befintliga turbo )

  • 347.17 EUR

465169-5001S / 465169-5003S Garrett TB2543 Originalnummer : 5003712, 3517642 , 8603518  ( Renovering utav din befintliga turbo )- Renovering utav din befin

I lager.
Varenummer: 465169-5003S-R
Del

465169-5001S / 465169-5003S Garrett TB2543 Originalnummer : 5003712, 3517642 , 8603518  ( Renovering utav din befintliga turbo )

- Renovering utav din befintliga turbo.

- 3 års garanti.

- Renoverad till perfektion i vår egna turboverkstad här i Sverige.

- Monteringssats ingår vid köp utav denna turbo.

Ännu en unik Volvo turbo ifrån vårat stora bytessystem till Volvo personbilar.

465169-5001S / 465169-5003S Garrett TB2543 Originalnummer : 5003712, 3517642 , 8603518  ( Bytesturbo )

Packningssats ingår vid köp utav denna turbo.

Bytesturbo = gamla turbon skall i retur här.

Turbonummer / Originalnummer / Turbofakta :

Part Number465169-5003S
Previous Version465169-0001, 465169-0003
OE Number 5003712, 3517642
Year 1991-
Description Volvo  740, 760, 765, 940
CHRA 443854-0034   (443854-5034S, 443854-0050)
Turbo Model TB2543
Engine B230,  B230FT
Engine Manufacturer Volvo
Displacement 2.3L,  2316 ccm, 4 Cylinders
Power  121/140/167
RPM Max5200
Fuel Gas
Angle α (compressor housing)327º
Angle β (turbine housing)  285º
Bearing Housing 444357-0014 (1100025460)(Water Cooled)
Turbine Wheel435922-0001  (432620-0002, 435257-0001, 435257-0002, 435737-0005)(Ind. 41.5 mm, Exd.  53. mm, Trm 61, 11 Blades)  (1100025436)
Comp. Wheel431350-0015 (431350-0001, 431350-0007) (Ind. 39.75 mm, Exd. 52. mm, Trm 58, 8+8 Blades, Billet)
Back plate432280-0001 (444655-0001)
Heat shield Number 443594-0001 $13.84 NEW IN STOCK
Repair Kit709143-0001 (1100025761)
Turbine Housing413567-0025
Compressor Cover413663-0003 (413663-0103)
Turbine Housing AR 0.64
Actuator432340-0011
Settings waste gate (pressure)0.43-0.50 bar
Settings Waste gate (lift shaft)0.38 mm
Gasket (oil outlet)413709-0001 (Paper)
ManufacturerHoneywell-Garrett


Applications


1991- Volvo  740, 760   Engine B230FT

1994- Volvo  765, 940, 960    Engine B230FT
