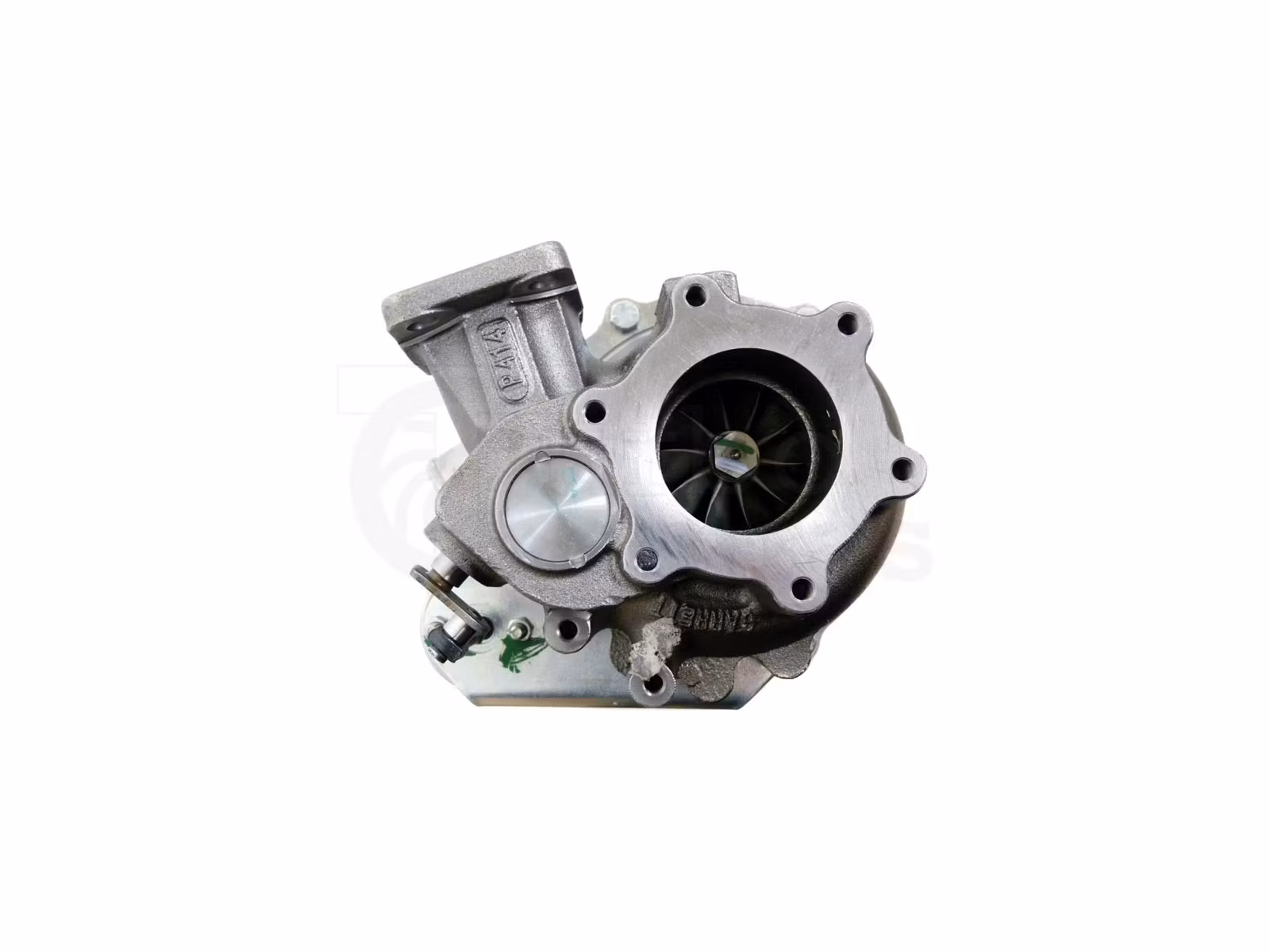

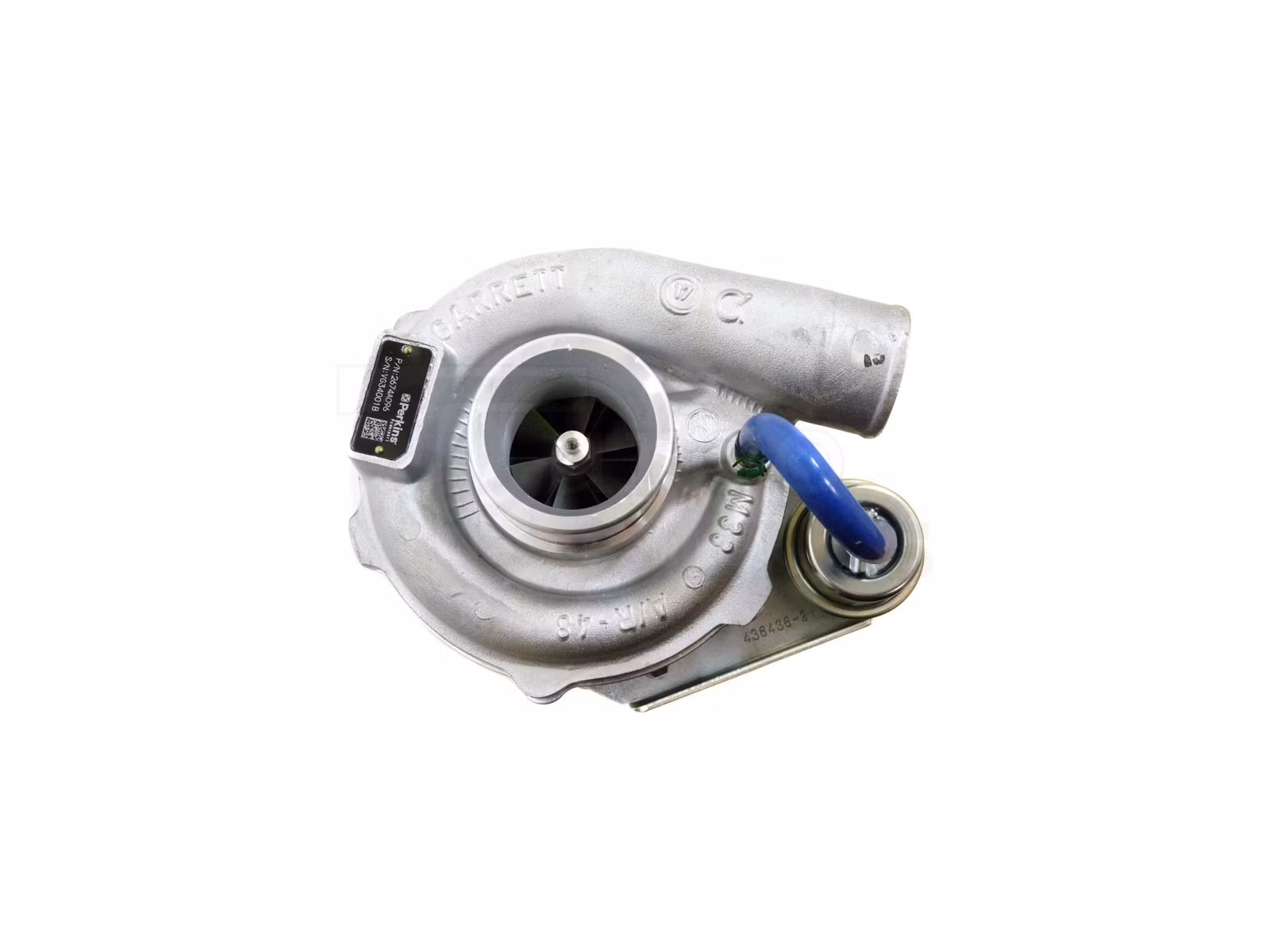

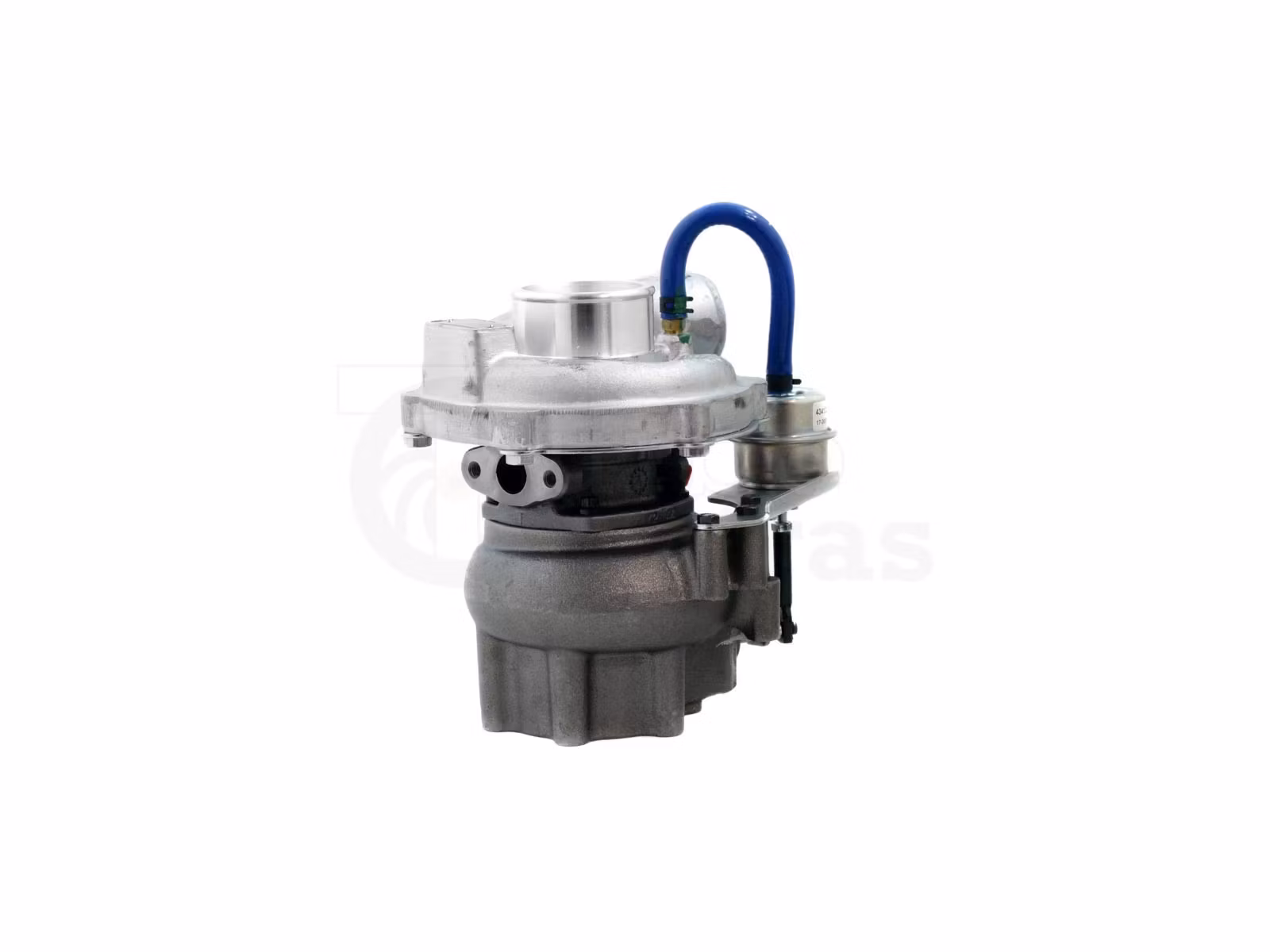

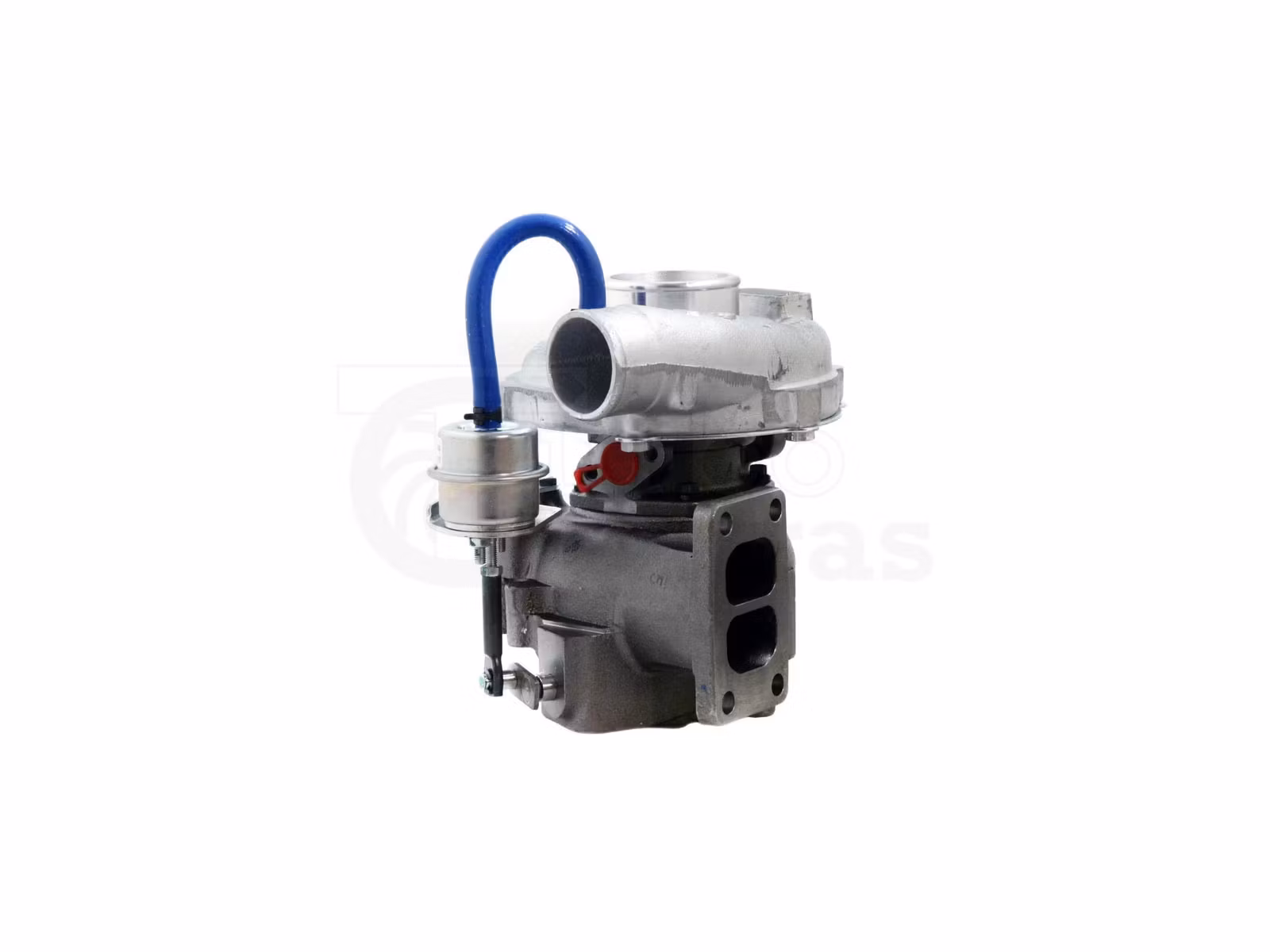

452233-5005S Garrett GT3267 fabriksny originalturbo.

  • 775.59 EUR
  • 659.25 EUR

452233-5005S Garrett GT3267 fabriksny originalturbo.Monteringssats med packningar + pinnbultar + muttrar ingår vid köp utav denna turbo online : Originalnu

I lager.
Varenummer: 2271
Del

452233-5005S Garrett GT3267 fabriksny originalturbo.

Monteringssats med packningar + pinnbultar + muttrar ingår vid köp utav denna turbo online :

Originalnummer Perkins : 2674A096

Turbonummer / ersättningsnummer Garrett : 452233-5005S , 452233-5005 , 452233-0005

Turbonummer / Ersättningsnummer / Originalnummer :

Part Number 452233-5005S
Previous Version 452233-0005, 452233-5
OE number 2674A096, U2674A096
Year1999-
DescriptionBP25/BC25.1 Agricultural
CHRA436058-0006 (436058-5006S) $750.00
Turbo Model GT3267S
EngineT6.60, T6.60 (Vista 6)
Engine ManufacturerPerkins
Displacement6.0L, 6000 ccm, 6 Cylinders
KW134/182
RPM Max2500
FuelDiesel
Bearing Housing447535-0003 $59.60 NEW IN STOCK
Turbine Wheel434444-0008 (Ind. 64. mm, Exd. 54. mm, 10 Blades) $145.00  NEW IN STOCK
Comp. Wheel434437-0003 (Ind. 67. mm, Exd. 48.25 mm, Trm 52, 6 Blades Threaded bore type) $139.00 NEW IN STOCK
Back plate436040-0004 $23.76 NEW IN STOCK
Heat shield Number447553-0006 $11.76 NEW IN STOCK
Repair Kit709147-0001 (1102032750) $127.00 NEW IN STOCK
Turbine Housing435066-0046
Compressor Cover436237-0010
Actuator434133-0024
Settings Waste gate (pressure)1.450-1.550 bar
Settings Waste gate (lifting rod)1.00 mm
Gasket (turbine inlet)409039-0000 (312617, 2405022, 7C7431)(Stainless Steel) $13.52
Gasket (turbine outlet)210551 (Inox Steel)
Gasket oil inlet210023  (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)  $4.48
Gasket (oil outlet)210060 (311585, 148062, 2475013)(Paper) $4.48
ManufacturerHoneywell-Garrett


Applications

1999- Perkins BP25/BC25.1 Agricultural with T6.60 (Vista 6)
