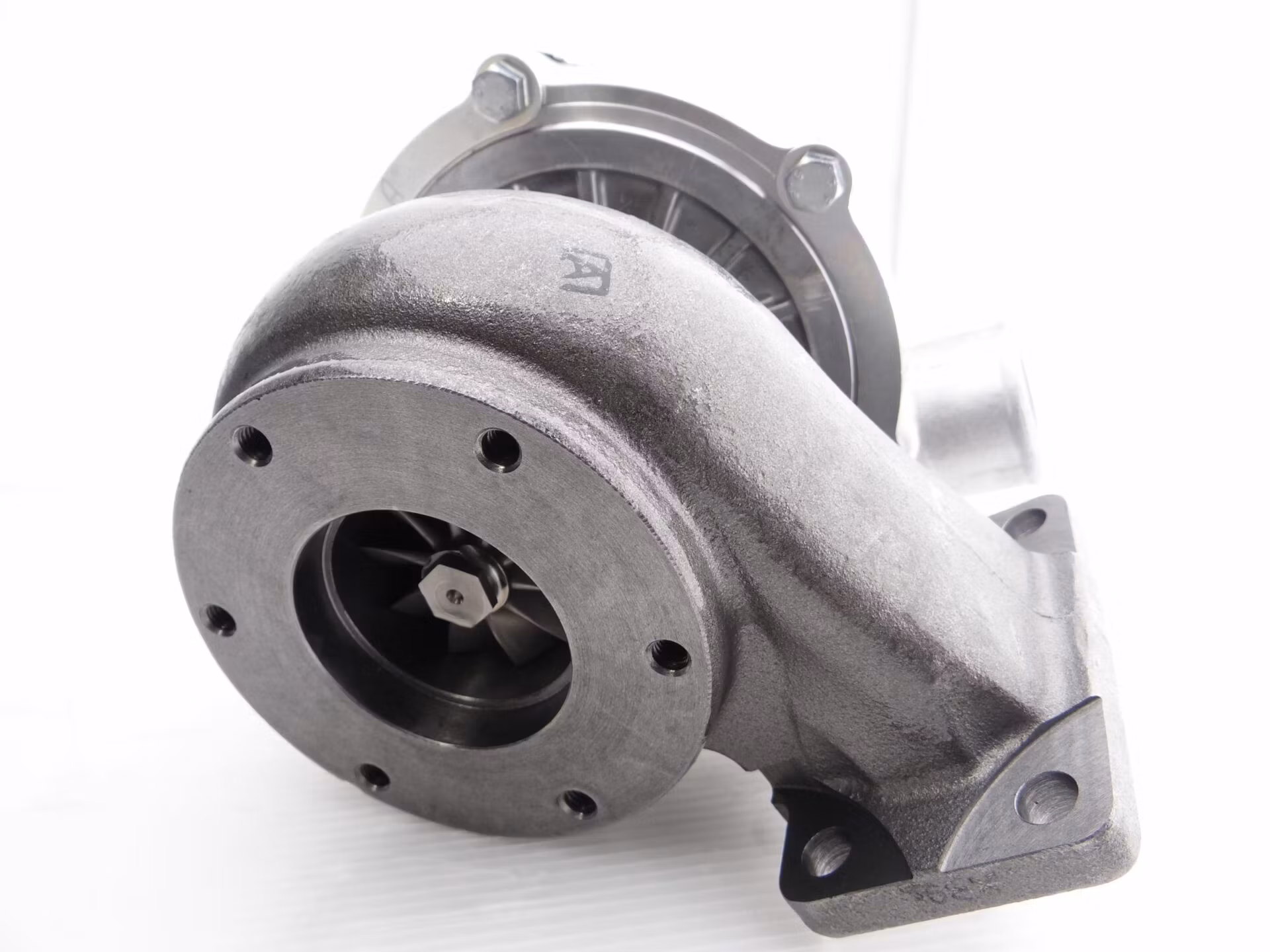

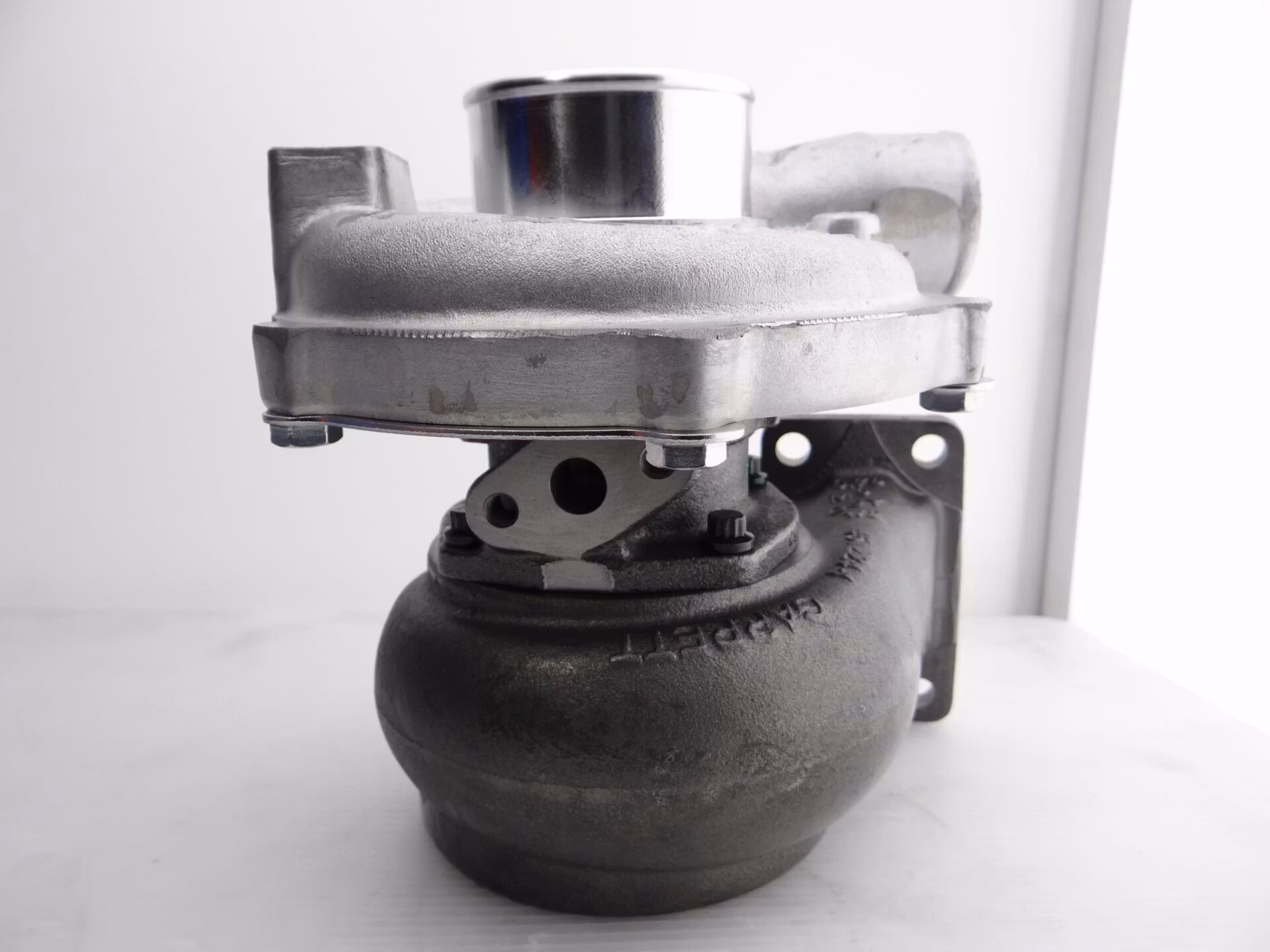

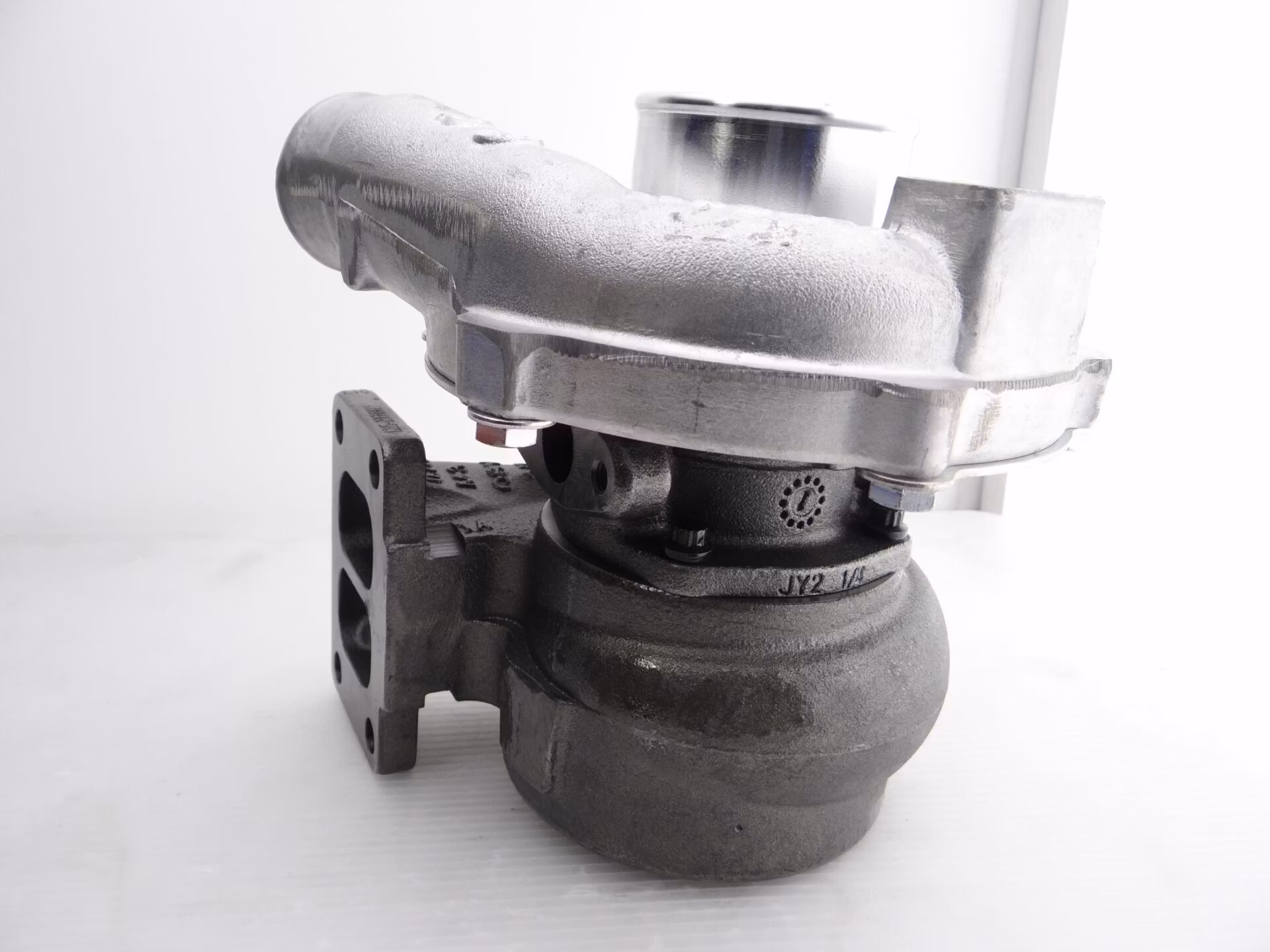

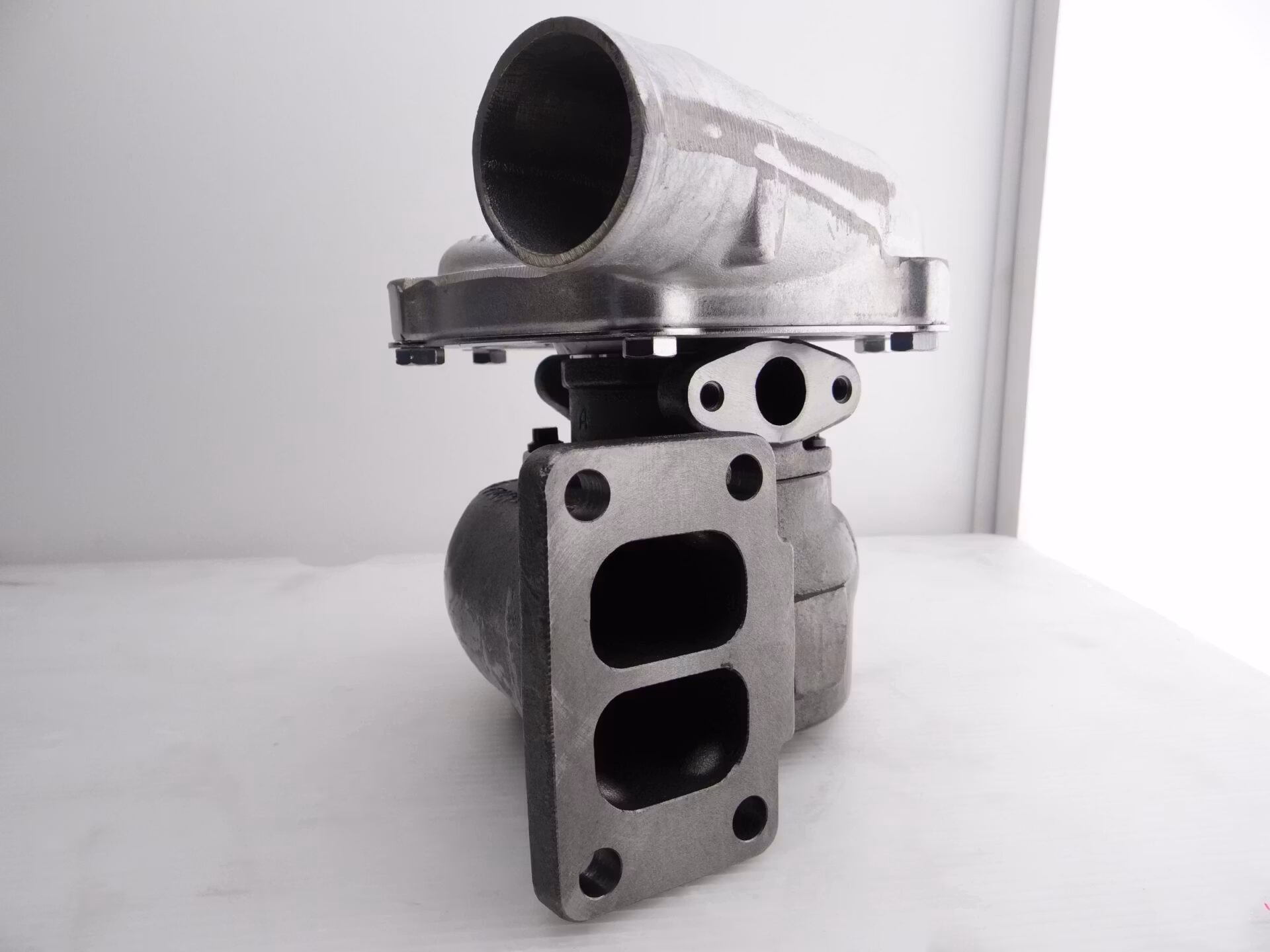

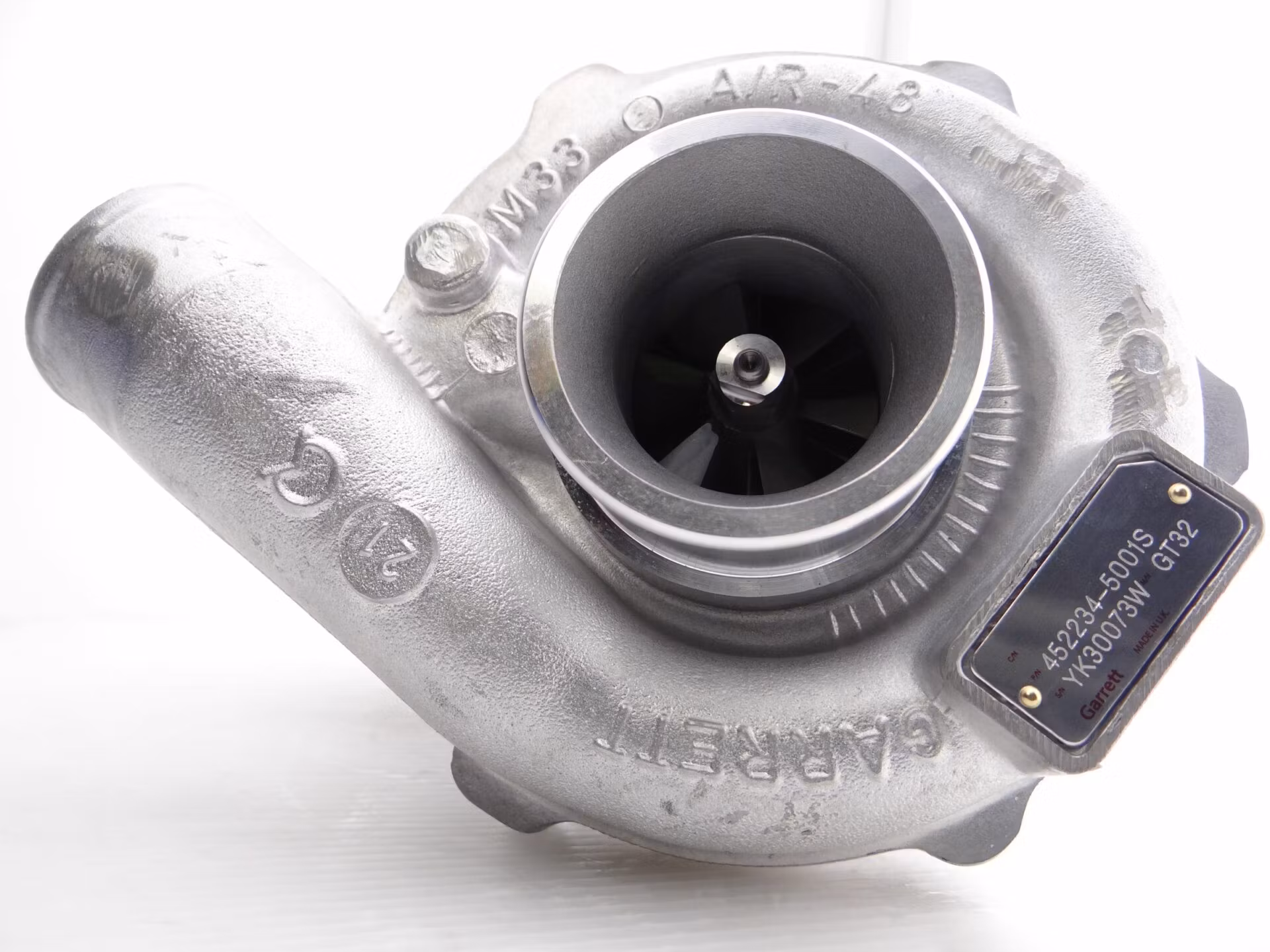

452234-5001S Garrett GT3271 OEM nummer : 2674A090 ( Bytesturbo )
- Bytesturbo fabriksny alternativt renoverad med originaldelar i vår verkstad.
- 3 års garanti.
- Få turbon först returnera sedan gamla turbon enkelt med vår kundtjänst inom 3 månader.
Turbonummer / Originalnummer / Turbofakta :
Part Number | 452234-5001S |
Previous Version | 452234-0001, 452234-5001, 452234-5002, 452234-5002S, 452234-9001, 452234-9002, 4522340001, 4522340002, 4522345001, 4522345002, 4522345002S, 4522349001, 4522349002, |
OE number | 02201570, 166-2881, 1662881, 2-201570, 2201570, 2674A090, 2674A091, 4222178M91, 500356, U2674A090, U2674A091 |
Description | Truck Engine & Power Units |
CHRA | 436058-0004 (436058-5004S)(1000010391) $300.00 NEW IN STOCK, MADE IN USA |
Turbo Model | GT3267 |
Engine | T6.60 |
Displacement | 5980 ccm, 6 Cylinders |
KW | 122/165 |
Angle α (compressor housing | 196° |
Angle β (turbine housing) | 0° |
Bearing Housing | 447535-0003 (Oil Cooled)(1900011181) $85.00 NEW IN STOCK |
Turbine Wheel | 434444-0007 (Ind. 64. mm, Exd. 54.7 mm, Trm 73, 10 Blades)(1100016325) $125.00 NEW IN STOCK |
Comp. Wheel | 434437-0005 (Ind. 46.20 mm, Exd. 67. mm, Trm 4.69, 6+6 Blades, Superback)(1200016458) $49.00 NEW IN STOCK |
Back plate | 436040-0004 (1300016139) $23.76 NEW IN STOCK |
Heat shield Number | 447553-0006 (2030016048B) $12.80 NEW IN STOCK |
Repair Kit | 709147-0001 (1102032750, 5000010173) $127.00 NEW IN STOCK |
Turbine Housing | 451225-0028/451225-0023 |
Compressor Cover | 436237-0013 |
Turbine Housing AR | 0.78 |
Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 2405022)(Inox Steel)(1900000006) $13.52 |
Gasket (turbine outlet) | 210226 (2405066)(Stainless Steel) $29.00 |
Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48 |
Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(2475013)(Paper) $4.48 |
Gasket Kit | 215096 (1900100300, 2090505315, JTC11319, XJTC11319) $28.63 |
Manufacturer | Honeywell-Garrett |
Applications
Perkins Truck with T6.60 Engine
