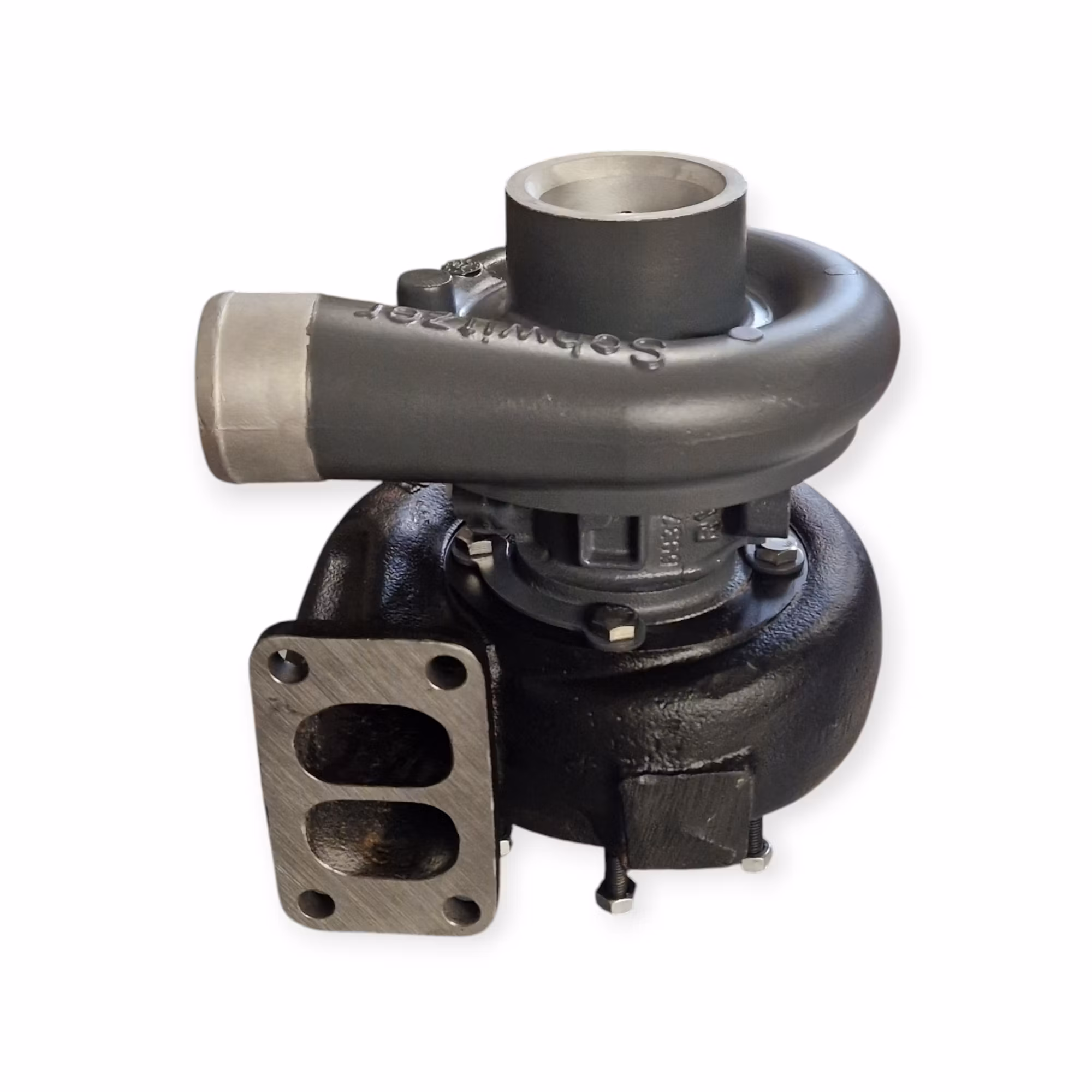

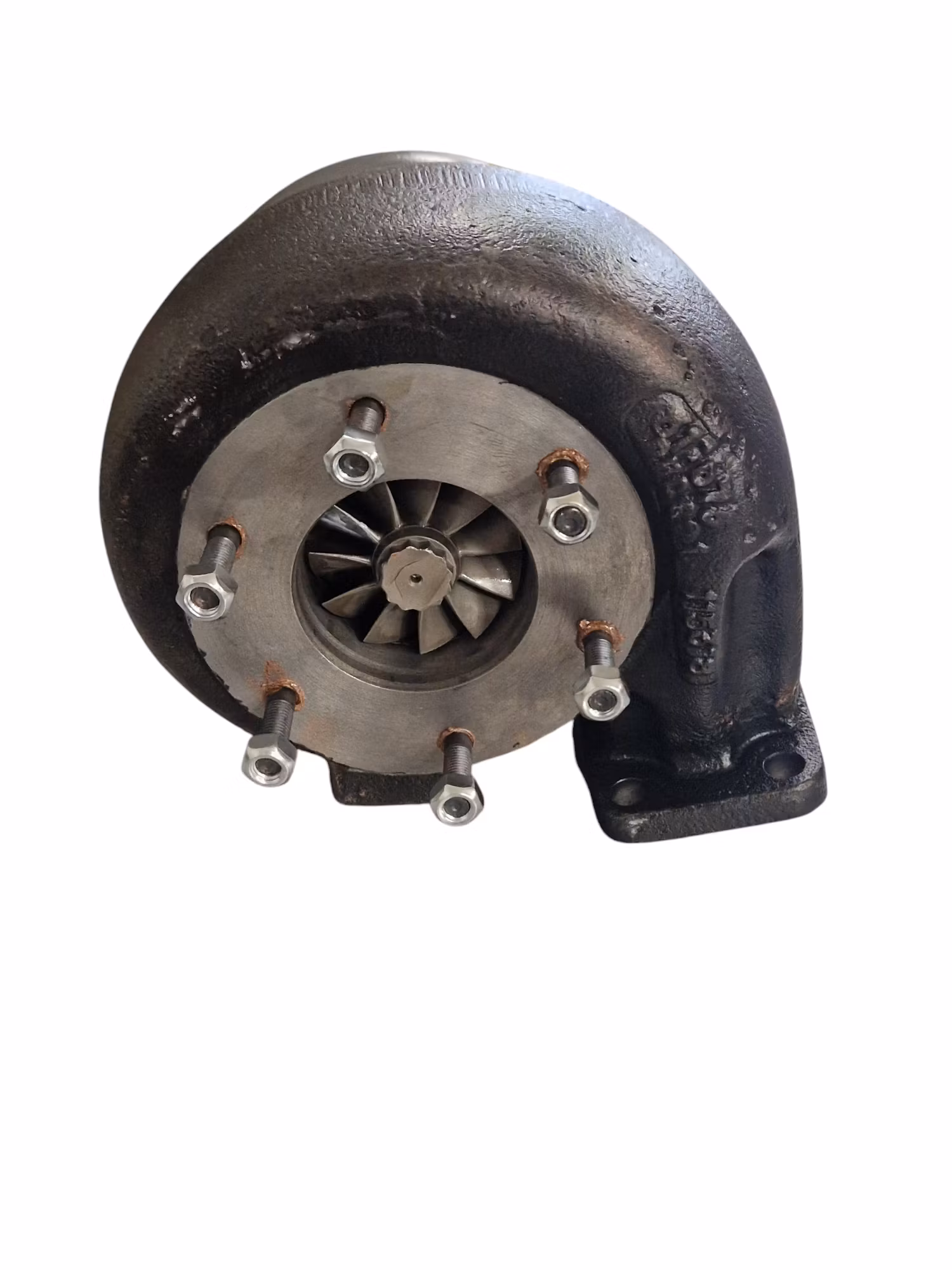

312940 BorgWarner S2B - Renovering utav din befintliga turbo ( Renovering )

  • 779.31 EUR

312940 BorgWarner S2B - Renovering utav din befintliga turbo ( Renovering )- Renovering utav din befintliga turbo.- Renoveras utav erfarna turbotekniker i vår m

I lager.
Varenummer: 312940-R
Del

312940 BorgWarner S2B - Renovering utav din befintliga turbo ( Renovering )

- Renovering utav din befintliga turbo.

- Renoveras utav erfarna turbotekniker i vår moderna turboverkstad.

- Levtid 1-3 dagar normallt sett.

Turbonummer / Originalnummer / Turbofakta :

Part Number 312940
OE number 836847519
Year1990-03
DescriptionValmet (Sisu Diesel) Tractor (Off-Highway)
Manufacturer Part Number312507
CHRA312938 $750.00 NEW IN STOCK
Turbo ModelS2B/7621DAE/1.15D9, S2B
Engine620DS
Displacement6.6L, 6600 ccm
KW130/177
FuelDiesel
Angle α (compressor housing)345°
Angle β (turbine housing) 35°
Bearing Housing312487 (Oil Cooled)(1900011197) $127.53 NEW IN STOCK
Turbine Wheel316787 (Ind. 73.73 mm, Exd. 58.42 mm, Trm 9.24, 11 Blades)(1100016205) $114.00 NEW IN STOCK7
Comp. Wheel 311948 (Ind. 52.1 mm, Exd. 76.2 mm, Trm 7.6, 7+7 Blades, Superback) NEW IN STOCK
Back plate 197340 (408045-0041) $20.12 NEW IN STOCK
Heat shield Number194149 (2030016078) $14.64 NEW IN STOCK
Repair Kit318378 (313076, 313654, 313922, 315362, 318381)(1252212750, 5000030002) $97.20 NEW IN STOCK
Turbine Housing311671
Compressor Cover 311950
Gasket (turbine inlet)409039-0000 (409039-0001, 210022-0000, 2405022, 2405023)(Inox Steel)(1900000006) $13.52
Gasket (turbine outlet210226 (409196-0001)(Stainless Steel) $17.71
Gasket oil inlet210023  (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762,  409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)  $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027) $3.32
Gasket Kit 215111 (2090505007)
ManufacturerBorg Warner - 3K - Schwitzer


Applications


1990-03 Valmet (Sisu Diesel) Tractor Agricultural with 620DS Engine
